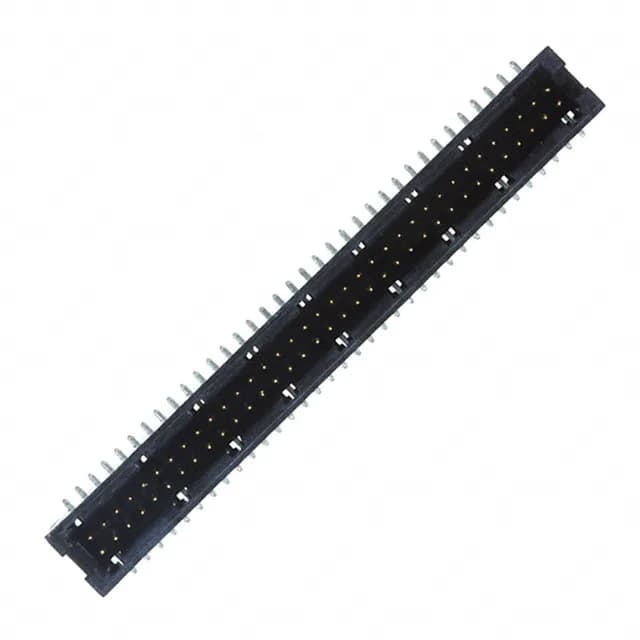

TE Connectivity AMPMODU 50/50 Grid header, order code 5-104655-8, 70 positions, dual row, 0.050" (1.27mm) pitch, 0.5A per contact, gold mating contacts, surface-mount, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.226\" (5.74mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 6.35mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 70 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104655-8: The series is specified for automotive, general purpose, medical, military, and telecommunications equipment — the 0.050" pitch and shrouded 4-wall housing suit dense board-to-board interconnects where alignment and polarization matter.
The specified mated stacking height is 6.35mm.
RoHS and REACH compliance status is available from the manufacturer upon request.
