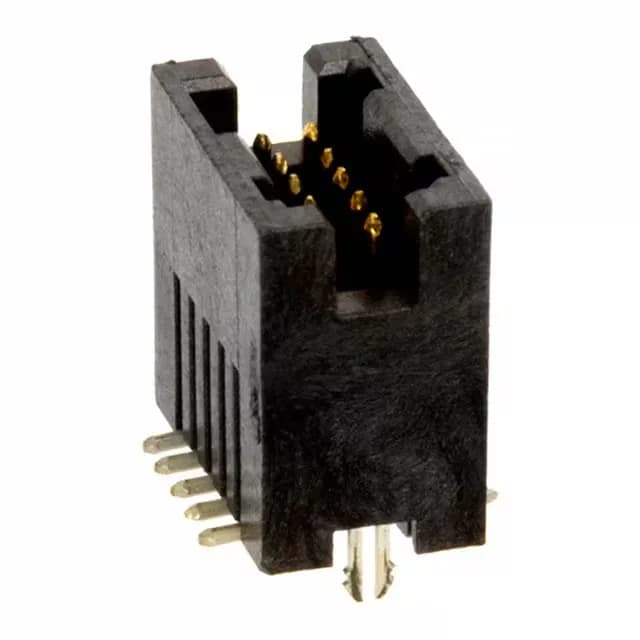

5-104693-1 TE Connectivity AMPMODU 50/50 Grid Header SMD 10

MPN5-104693-1
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid, 5-104693-1, Board to Board Header, SMD, 10 Positions, 0.050" (1.27 mm) Pitch, 2 Rows, Shrouded - 4 Wall, Gold Mating Finish, 0.5 A per Contact, 9.91 mm Mated Stack Height, Board Lock, UL94 V-0

$4.0800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104693-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-104693-1 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating0.5A per Contact
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.367\" (9.33mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights9.91mm

All specifications

5-104693-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Military, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.050" Pitch, 10-Position Shrouded Header for Board-to-Board Mezzanine

The 5-104693-1 is a 10-position, 2-row shrouded header from TE's AMPMODU 50/50 Grid series. The tin-plated solder tails (150 µinch) mate with the SMT pads during reflow.

What It Connects To and How It Mounts

This is a surface-mount header designed to mate with a matching AMPMODU 50/50 Grid receptacle (not included). The 0.050" pitch and 9.91 mm stack height define the board-to-board spacing — confirm the receptacle's mated stack height matches before committing the layout. The phosphor bronze contacts with gold mating finish resist corrosion in humid or mildly corrosive environments.
