The 1.27 mm pitch and 9.91 mm mated stack height set the board spacing and routing density — each row carries 30 contacts on a tight 0.050" grid.
For power or high-current duty, a wider-pitch series like the 4.20 mm AMPMODU would be needed.

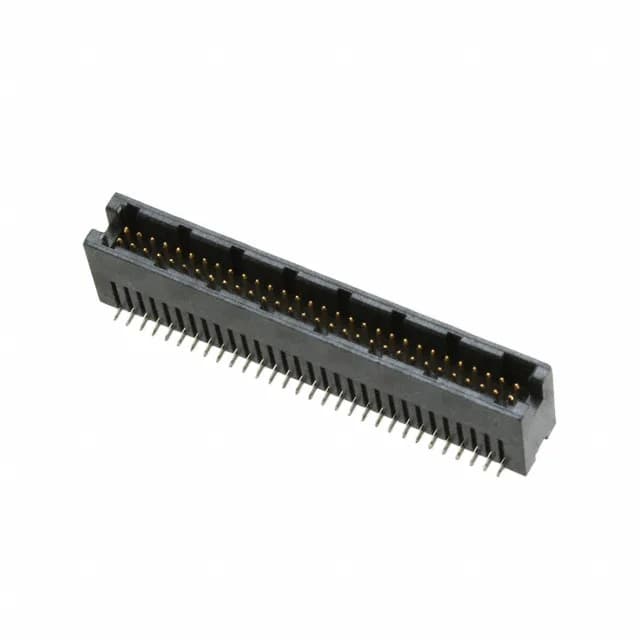

5-104693-6 TE Connectivity AMPMODU 50/50 Grid Header, 60 Pos
MPN5-104693-6
Active
TE Connectivity AMPMODU 50/50 Grid header, 5-104693-6, 60 positions, 2 rows, 1.27 mm pitch, SMT, shrouded 4-wall, gold mating finish, board lock, UL94 V-0, -65°C to 105°C, 0.5 A per contact.
$10.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.367\" (9.33mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 9.91mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 60 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 5-104693-6?
This is a board-to-board header — it mates with a matching AMPMODU 50/50 Grid receptacle (same series, 1.27 mm pitch, 60 positions). The 4-wall shroud and push-pull fastening guide the receptacle into alignment.
Can 5-104693-6 be used in automotive applications?
Yes — automotive is listed in the application range. The -65°C to 105°C temperature range and UL94 V-0 housing meet typical underhood or cabin ambient requirements.
