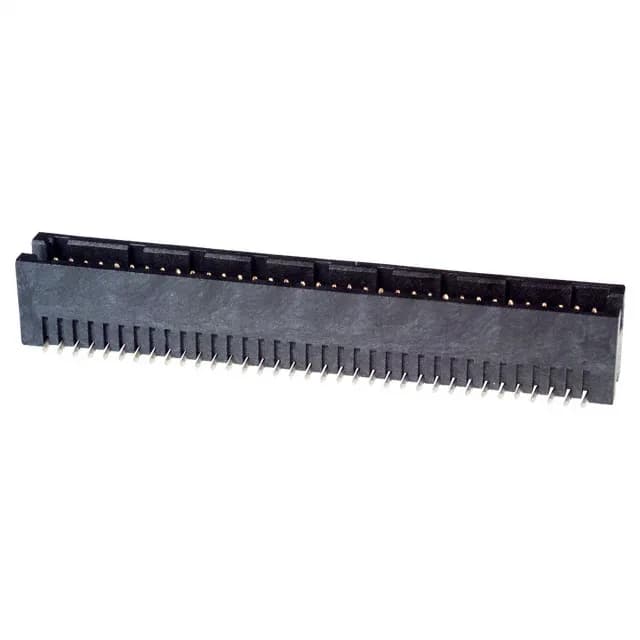

5-104693-7 TE Connectivity AMP Connectors Pin Header, 70 Pos

MPN5-104693-7
Active

TE Connectivity AMPMODU 50/50 Grid, Board to Board Header, 70 positions, 2 rows, 1.27mm pitch, Surface Mount, Shrouded - 4 Wall, Board Lock, Gold mating, Tin post, 0.5A per contact, -65°C to 105°C, UL94 V-0, Tube

$13.1000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104693-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104693-7 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating0.5A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.367\" (9.33mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights9.91mm

All specifications

5-104693-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Military, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions70
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board header with 70 positions at 1.27mm pitch

The 5-104693-7: This is a 70-position, dual-row header from the AMPMODU 50/50 Grid series, designed for board-to-board stacking. The 1.27mm pitch and 1.27mm row spacing keep the footprint compact while the 9.91mm mated stack height sets the board separation. A board lock on each end holds the header flat during reflow and resists shear from the cable strain on the mating half.

SMT termination with gold mating interface

The solder posts are tin-plated at 150.0µin, compatible with standard SAC reflow profiles. The header is surface-mount only; no through-hole option in this order code.

Frequently asked questions

Is 5-104693-7 RoHS compliant?

Yes, it is listed as ROHS3 compliant.

What is the recommended mating connector for 5-104693-7?

This is a male pin header from the AMPMODU 50/50 Grid series. It mates with a female socket receptacle from the same series, also on 1.27mm pitch and 1.27mm row spacing. The mated stack height is 9.91mm. Confirm the receptacle's position count matches 70 positions.

Can 5-104693-7 be used in automotive applications?

Yes, automotive is listed among its intended applications, along with general purpose, medical, military, and telecommunications.
