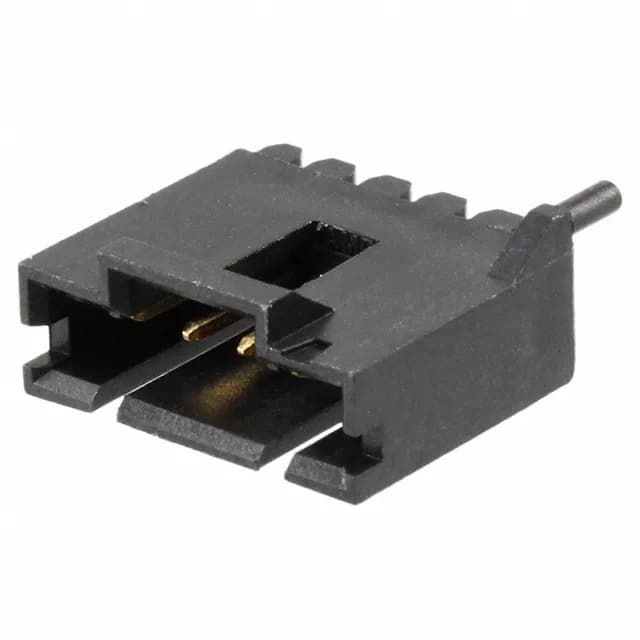

TE Connectivity AMPMODU MTE, 5-104809-4, shrouded header, 5 positions, 2.54mm pitch, single row, through hole, gold-plated male pins, rated 3A, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The four-wall shroud and integral keying slot prevent mis-mating with the wrong receptacle, which is a common failure point in blind-mate or vibration-prone assemblies.
Each contact is rated 3A, typical for signal-level circuits on a 2.54mm pitch header.
The 5-104809-4 is a single-row, 5-position header. Pin 1 is typically marked by a square pad on the PCB footprint or a chamfer on the housing. The keying slot is located on the shroud to orient the mating receptacle.
Yes, the 5-104809-4 is RoHS compliant per the manufacturer's listing.
The header includes a keying slot in the shroud, not a separate keying pin. This slot aligns with a matching key on the receptacle to prevent incorrect mating.
