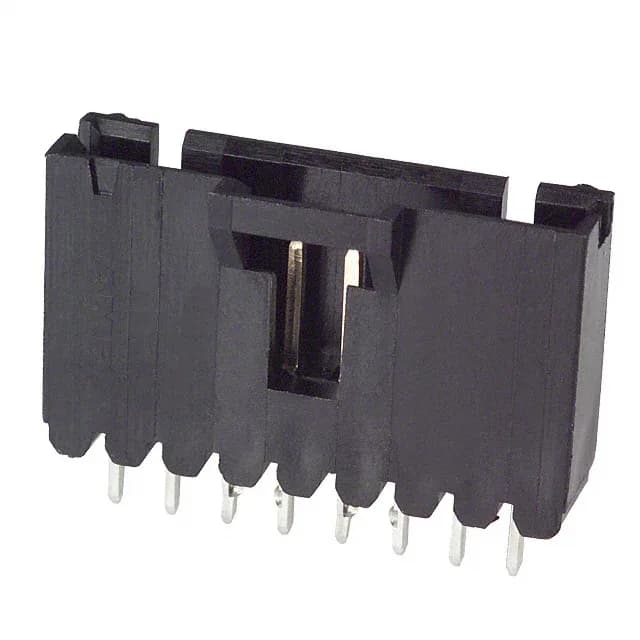

TE Connectivity AMP Connectors AMPMODU MTE, Header, 8 Positions, 1 Row, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Finish, 3A, -65°C ~ 105°C, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The header mates with AMPMODU MTE receptacles (crimp-to-wire or IDC) that match the 2.54mm pitch and single-row layout. The keying slot on the header prevents reversed insertion — the receptacle can only engage in one orientation, which saves a mis-wired harness on the line.
Supplied in tube packaging.
The mating pitch is 0.100" (2.54mm), which is the standard breadboard-compatible spacing. The single-row layout keeps the board footprint narrow.
Yes, the header includes a keying slot as a feature. This prevents the receptacle from being inserted backwards, which avoids pin damage and reversed wiring.
It mates with AMPMODU MTE receptacles (crimp-to-wire or IDC) that share the same 2.54mm pitch and single-row configuration. The latch holder and keying slot ensure a secure, oriented connection.
Yes, it is RoHS Compliant. The housing material is thermoplastic rated UL94 V-0.
