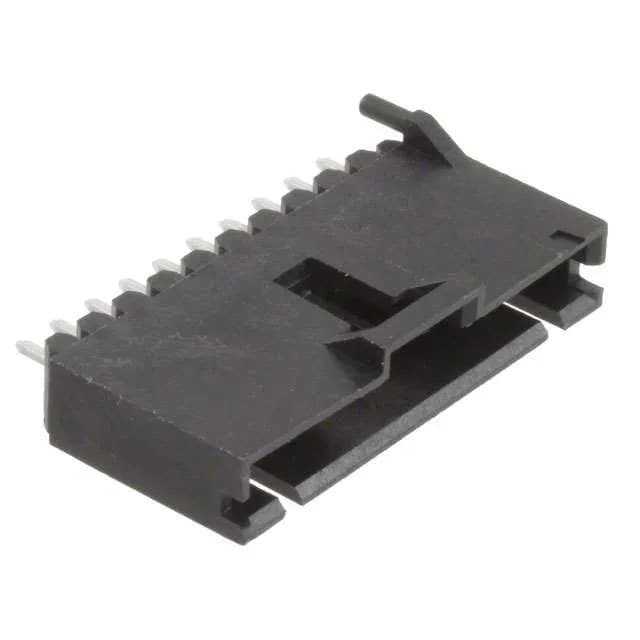

10-Position Shrouded Header for Board or Cable Duty
This 5-104809-9 is a single-row, 10-position header from the AMPMODU MTE series, built for board-to-board or cable-to-board connections. The 0.100" (2.54mm) pitch matches standard breadboard and prototype layouts, and the full 4-wall shroud protects the male pins from damage during mating and handling. Rated 3 A per contact, with gold plating on the mating surface (15.0 µin) for corrosion resistance and tin on the solder tails (100.0 µin) for reliable soldering.
Press-Fit or Solder Termination Options
Termination is listed as both press-fit and solder — the through-hole pins (0.130" post length) can be wave-soldered or pressed into plated through-holes depending on your assembly process. The brass square pins are strong enough for press-fit insertion without buckling.
