TE Connectivity AMP Connectors 5-104894-4 — Pin Headers

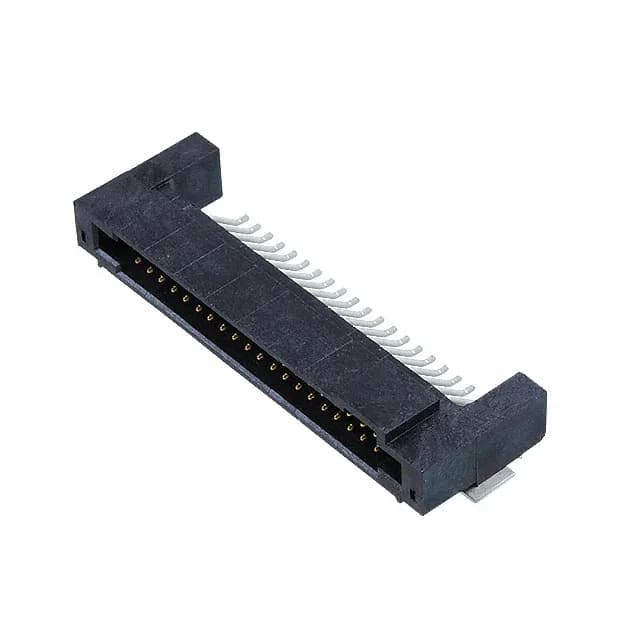

5-104894-4 TE Connectivity AMPMODU 50/50 Grid Header, 40 Pos

MPN5-104894-4
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid, Board to Board, Header, Male Pin, 40 Positions, 0.050" (1.27mm) Pitch, Surface Mount, Right Angle, Shrouded - 4 Wall, Board Lock

$9.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104894-4 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating0.5A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.213\" (5.40mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

5-104894-4 additional specifications
ParameterValue
StyleBoard to Board
PackageTube
FeaturesBoard Lock, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Military, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-Position Right-Angle SMT Header for Dense Board-to-Board Links

The 5-104894-4 is a 40-position, dual-row header from the AMPMODU 50/50 Grid series, designed for parallel board stacking with a 1.27mm pitch on both rows and between rows. Rated at 0.5A per contact with gold-on-mating and tin-on-post plating, it suits moderate-signal-density interconnects in automotive, medical, military, and telecom gear where corrosion resistance and repeated mating cycles matter.

Board Lock and Solder Retention for Reflow Reliability

Integrated board locks and solder retention features anchor the header during wave or reflow soldering, preventing skew or lift-off common with right-angle SMT connectors.

ROHS3 compliant and packaged in tubes for automated placement.

Frequently asked questions

What is the pitch and position count of 5-104894-4?

It is a 40-position, dual-row header with a 1.27mm pitch on both the mating and row spacing.

Does 5-104894-4 have a board lock feature?

Yes, it includes board lock and solder retention features to secure the connector during soldering and in service.
