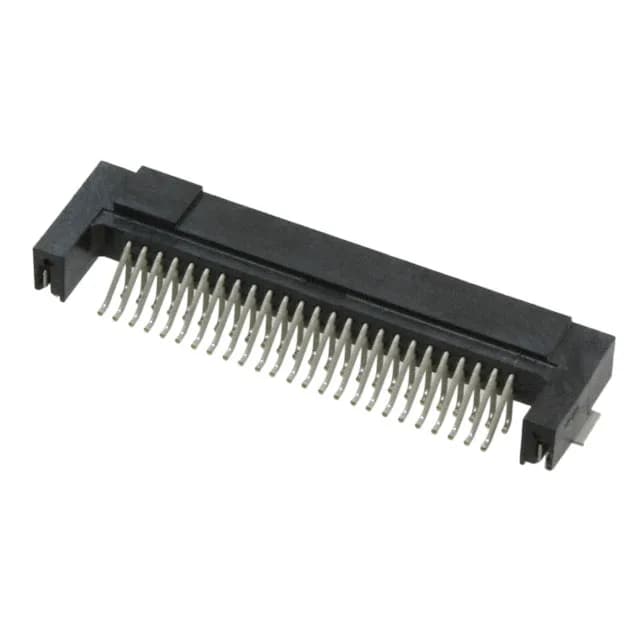

TE Connectivity AMP Connectors 5-104894-5 — Pin Headers

5-104894-5 TE Connectivity AMPMODU 50/50 Grid Header, 50 Pos

MPN5-104894-5
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid header, 5-104894-5, 50 positions, 0.050" (1.27 mm) pitch, dual-row, surface-mount right-angle, shrouded-4 wall, board lock, gold mating contacts, UL94 V-0.

$11.9300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104894-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104894-5 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating0.5A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.213\" (5.40mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

5-104894-5 additional specifications
ParameterValue
StyleBoard to Board
PackageTube
FeaturesBoard Lock, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Military, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions50
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board header for dense parallel stacking

The 5-104894-5 is a 50-position, dual-row header from the AMPMODU 50/50 Grid series, designed for board-to-board interconnects where the 0.050" (1.27 mm) pitch drives the PCB routing density and the mating receptacle footprint. The surface-mount, right-angle orientation places the connector at the board edge, with the mated receptacle running parallel to the PCB — a common configuration for mezzanine or card-edge stacking where z-height is constrained.

The post (solder tail) finish is 150 µinch tin, which provides a reliable solder joint with standard SAC305 or SnPb reflow profiles.

Frequently asked questions

What is the pitch of the 5-104894-5 header?

The mating pitch is 0.050" (1.27 mm), with the same row spacing of 0.050" (1.27 mm) — a dual-row grid that sets the PCB footprint for the mating receptacle.

Is the 5-104894-5 RoHS compliant?

Yes, it is ROHS3 compliant, per the manufacturer's compliance declaration.

Does the 5-104894-5 have board lock features?

Yes, it includes board lock and solder retention features for mechanical anchoring during reflow and resistance to shear forces from the mated cable assembly.
