TE Connectivity AMPMODU 50/50 Grid header, order code 5-104895-1, 10 positions, dual row, 1.27 mm pitch, 0.5 A per contact, gold-plated mating contacts, surface-mount right-angle, solder termination, board lock.

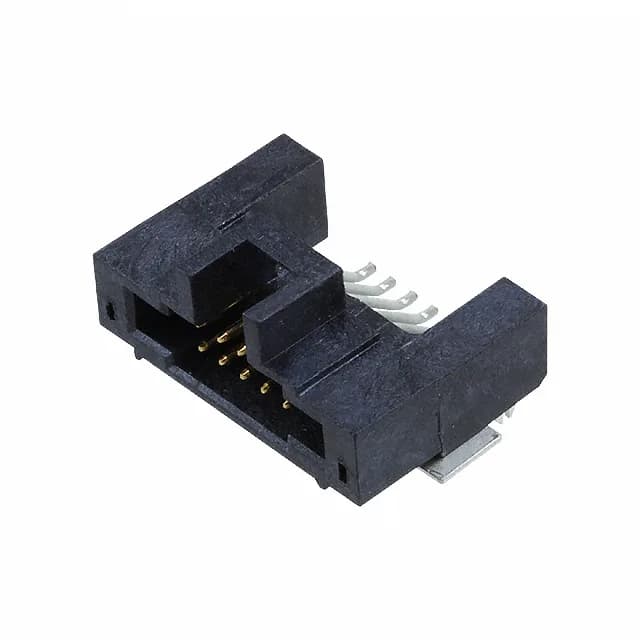

TE 5-104895-1 Header, 10 Pos, 1.27mm, SMT Right Angle
MPN5-104895-1
Active
TE Connectivity AMPMODU 50/50 Grid header, order code 5-104895-1, 10 positions, dual row, 1.27 mm pitch, 0.5 A per contact, gold-plated mating contacts, surface-mount right-angle, solder termination, board lock.
$3.5916Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.213\" (5.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the board-to-board style and series for 5-104895-1?
The style is Board to Board and the series is AMPMODU 50/50 Grid.
