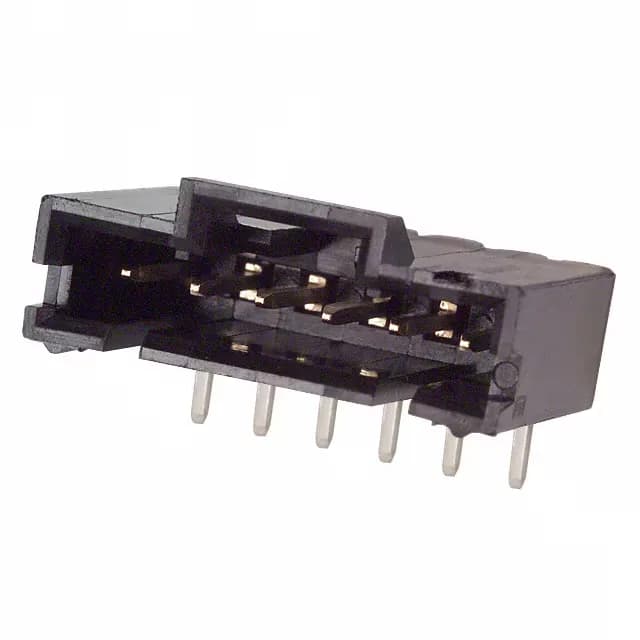

2.54 mm Pitch, 6-Position Right-Angle Header
The 30 µinch gold-over-nickel mating finish supports repeated connect-disconnect cycles — in a field-service or production-test role, that plating grade keeps contact resistance stable over hundreds of mates. A latch holder on the top wall locks the receptacle in place, preventing back-out under vibration — relevant for the automotive and industrial applications listed on the part.
Termination is solder — the through-hole posts are 0.130" (3.30 mm) long, tin-plated (100 µinch), designed for wave or hand soldering. A keying slot in the header body prevents mis-mating with an incorrect receptacle — useful when multiple similar headers share a board.
