TE Connectivity AMP Connectors, Economy Power series, 5-position single-row header, 0.156 inch (3.96 mm) pitch, 7.5 A per circuit at 250 VAC, tin-on-tin contacts, friction-lock fastening, single-wall shroud, through-hole vertical mount, UL94 V-0 housing, operating -25°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |

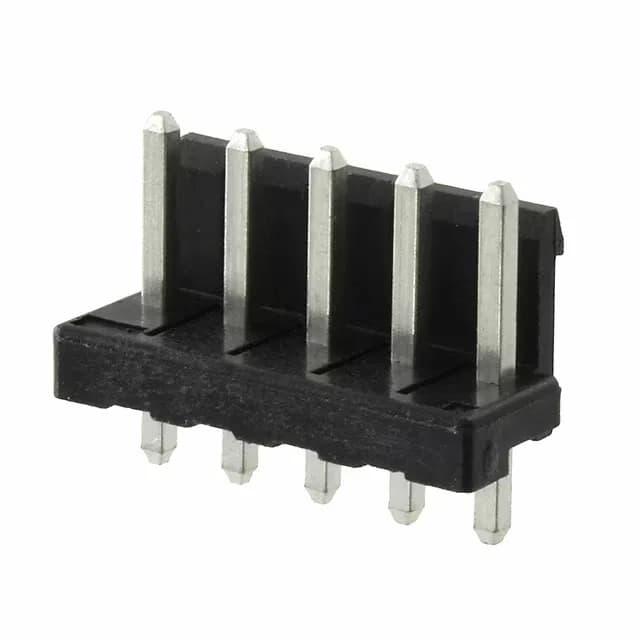

The 5-1123723-5: The single-wall shroud guides the mating receptacle but leaves the back of the pins exposed, which helps visual inspection of solder joints after wave soldering.
In a panel where the cable is routed and tied down nearby, this lock is sufficient. For high-vibration environments like an engine compartment, you would step up to a latch-holder or screw-lock design.
The pitch is 0.156 inch (3.96 mm), which is the centre-to-centre spacing between adjacent pins.
Rated 7.5 A per circuit at 250 VAC with tin-on-tin contacts. Derate current above the stated temperature per the derating curve in the product drawing.
