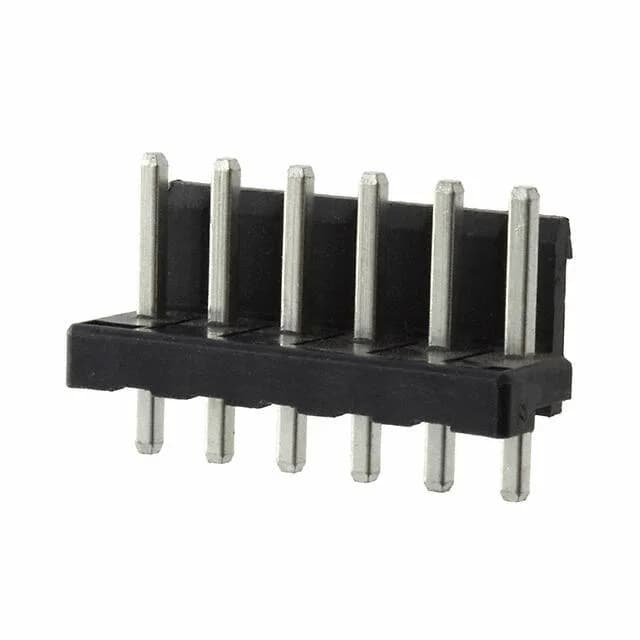

TE Connectivity AMP Connectors Economy Power series, 5-1123723-6, board-to-cable/wire header, 6 positions, 1 row, 0.156" (3.96mm) pitch, through-hole solder, shrouded 1-wall, friction lock, tin-plated square male pins, 7.5A at 250VAC, UL94 V-0 PBT GF insulator, -25°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
The 5-1123723-6: Rated 250VAC and UL94 V-0, this header suits general-purpose industrial and lighting equipment where a flame-rated housing is required inside an enclosure.
Through-hole mounting with a 0.146" (3.70mm) solder post length provides a robust mechanical anchor on the PCB — the post length is long enough for standard 1.6mm boards with good through-hole fill.
The 5-1123723-6 mates with a 6-position, 3.96mm pitch receptacle from the Economy Power series — typically a crimp-style housing that accepts the matching female terminals. Confirm the exact receptacle part number against your wire harness design.
