Single-wall shrouding protects the pin tips from accidental shorts but leaves the sides of the pins exposed for probing.
Pitch, position count, and current rating — the BOM-fit numbers

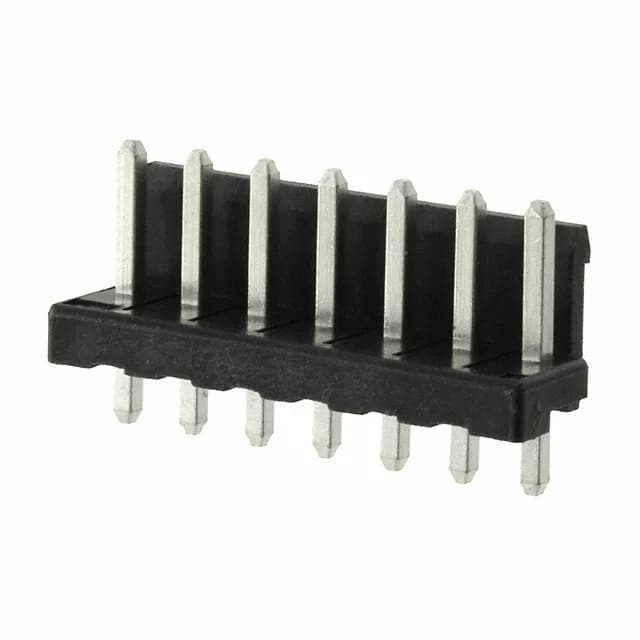

At 3.96 mm pitch, this header gives each circuit enough board space for a 7.5 A load without crowding adjacent traces. The 7-position count is loaded fully — all positions are active, no option for depopulation. Compared to the 6-position right-angle sibling 1394090-1 (2.85 mm pitch, latch holder), the 5-1123723-7 offers one more circuit, a wider pitch, and a vertical orientation — a straight board-entry fit rather than a right-angle cable exit.
Active production — sourcing and lifecycle status
RoHS compliant.
The square male pins are 0.303" (7.70 mm) long on the mating side, giving good wipe length for reliable contact with the receptacle's female terminals.
