TE Connectivity AMP Connectors 5-1375582-9 — Pin Headers, Sockets & Housings

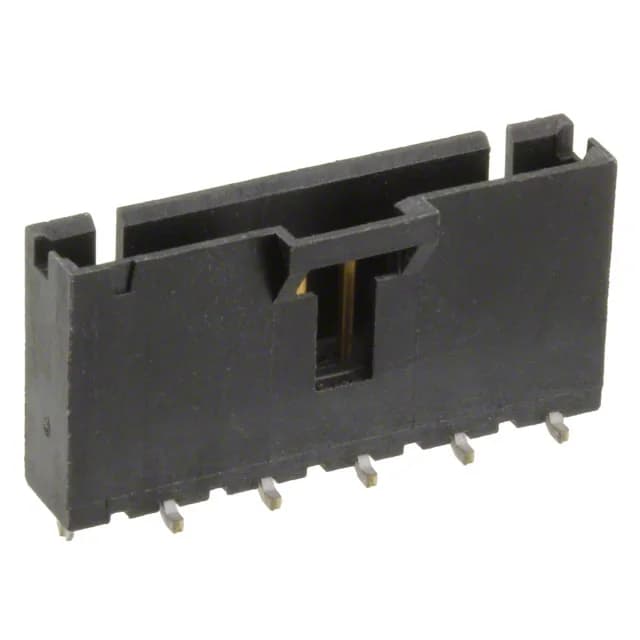

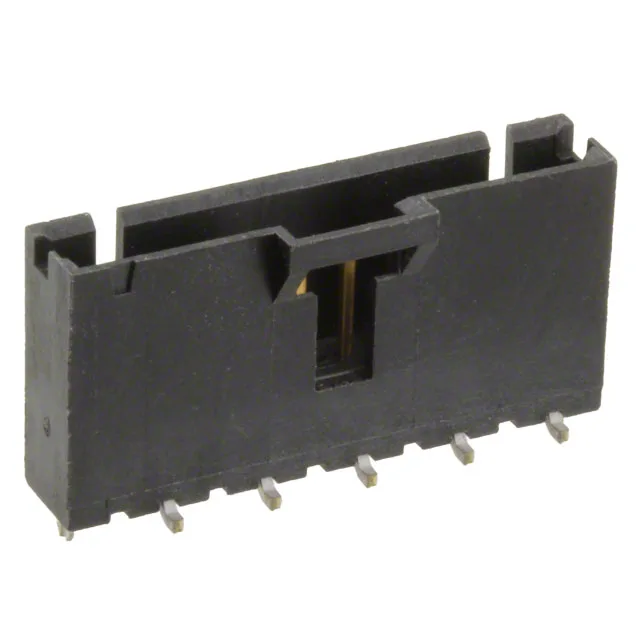

5-1375582-9 TE AMPMODU MTE Header, 10-Pos, 2.54mm, SMT

MPN5-1375582-9
Active

TE Connectivity AMPMODU MTE header, order code 5-1375582-9, 10 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.

$5.2400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-1375582-9 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-1375582-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-board or cable header with latch retention

The 5-1375582-9 is the 10-position member of TE Connectivity's AMPMODU MTE header line, a single-row shrouded header for board-to-board or cable connections. It carries gold-plated mating contacts rated 3 A, mounts surface-mount with solder termination, and includes a latch holder and board lock for secure retention.

Shrouded design and application range

The four-wall shrouding and keying slot protect the mating pins during blind-mate assembly and prevent mis-mating with the wrong receptacle.

Frequently asked questions

What compliance documentation is available for 5-1375582-9?

The header is rated UL94 V-0 for flammability. RoHS and REACH compliance documentation is typically provided by TE Connectivity; the product datasheet contains the official declarations.
