TE Connectivity AMP Connectors 5-1437536-2 — Pin Headers, Sockets & Housings

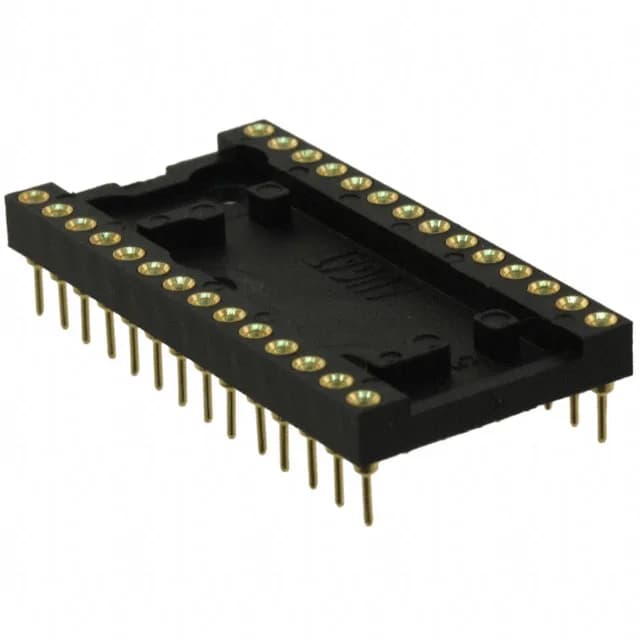

5-1437536-2 TE Connectivity 28-Pin DIP Socket Obsolete

MPN5-1437536-2
Obsolete

TE Connectivity AMP Connectors Series 500 DIP socket, 28 positions (2 x 14), 0.100" (2.54 mm) pitch, 0.6" (15.24 mm) row spacing, gold-plated beryllium copper contacts, closed-frame through-hole package, tube

$3.0800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-1437536-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1437536-2 specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Series500
MountingThrough Hole
Operating temperature-55°C ~ 125°C
Contact material - postBrass
Contact material - matingBeryllium Copper
PackageTube
FeaturesClosed Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance10mOhm
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Number of positions or pins28 (2 x 14)

Product details

28-Pin DIP Socket for Legacy IC Support

The 5-1437536-2: It accepts standard 0.300"-wide 28-pin DIP packages — the footprint that fits 8-bit MCUs, EPROMs, and legacy logic families. The closed-frame construction protects the contact beams during handling and soldering. The beryllium copper contact material with gold mating finish delivers a 10 mOhm max contact resistance and supports repeated insertion cycles in corrosive or vibration-prone environments.

Sourcing an Obsolete Part — Where the Stock Is

TE Connectivity lists the 5-1437536-2 as Obsolete. No direct pin-compatible replacement is published by the manufacturer — a board spin or alternate footprint is required if a substitute is needed. Available through independent distribution channels. Date-coded lots are confirmed at RFQ; no franchise stock remains.

What Mates and How It Mounts

Brass post material provides adequate solderability and mechanical retention. The closed frame prevents the contacts from being damaged during insertion of the IC.

Frequently asked questions

How can I order the 5-1437536-2 or check availability?

The 5-1437536-2 is Obsolete per TE Connectivity. It is sourced through independent distribution — quantities are lot-specific and confirmed at RFQ. Submit a request for current pricing and available date codes.

Who manufactures the 5-1437536-2?

TE Connectivity AMP Connectors. The base product number is 1437536.

What is the direct replacement for TE 5-1437536-2?

No direct pin-compatible replacement is published by TE. A board redesign or an alternate DIP socket with matching footprint and contact plating would be required.
