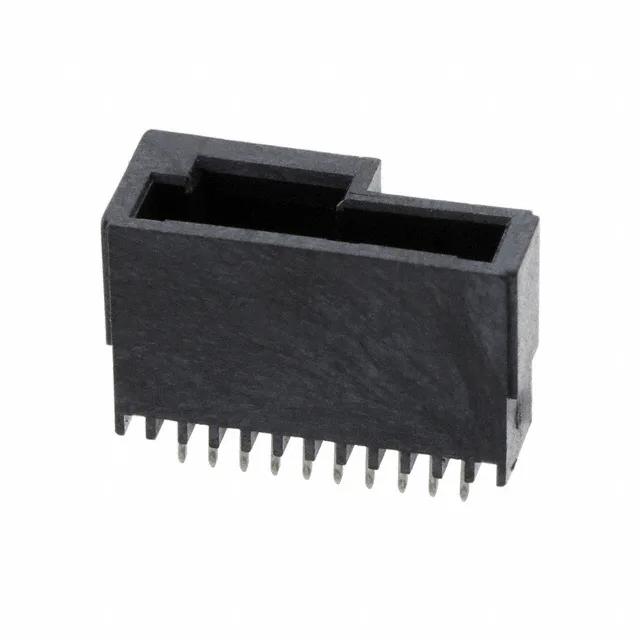

TE Connectivity AMP Connectors AMPMODU System 50 header, order code 5-146087-1, 10 positions, single row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, through-hole, solder termination.
TE AMPMODU System 50 5-146087-1 Header, 10-Pos 1.27mm
MPN5-146087-1
Active
TE Connectivity AMP Connectors AMPMODU System 50 header, order code 5-146087-1, 10 positions, single row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, through-hole, solder termination.
$1.8250Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 5-146087-1?
RoHS and REACH compliance documentation is available from TE Connectivity for this part.
