TE Connectivity AMPMODU Mod II, Header Breakaway, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Surface Mount, Gold Mating, Tin Tails, 3 A, -65°C to 125°C, UL94 V-0, Active, RoHS3

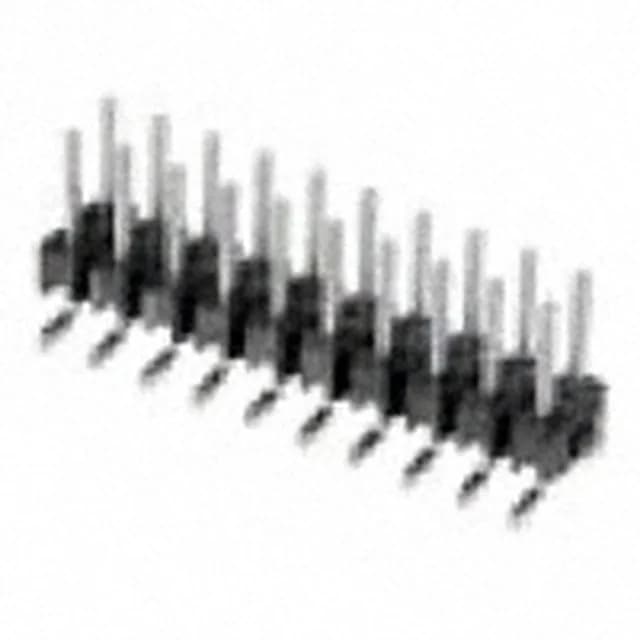

5-146130-4 TE AMPMODU Mod II 10-Pin Header, SMD, 2.54mm
MPN5-146130-4
Active
TE Connectivity AMPMODU Mod II, Header Breakaway, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Surface Mount, Gold Mating, Tin Tails, 3 A, -65°C to 125°C, UL94 V-0, Active, RoHS3
$2.0100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pitch and position count of 5-146130-4?
All 10 positions are loaded.
What is the closest pin-compatible alternative to 5-146130-4?
No direct cross-reference or equivalent part is listed in the evidence. For a pin-compatible alternative, check other AMPMODU Mod II breakaway headers with the same pitch, row count, and SMD termination — confirm the mating pin length and insulation height match your board stack-up.
