The 5-146257-6: This is a 12-position, dual-row breakaway header from the AMPMODU Mod II series. The tin-plated post (100 µinch) is the solder-joint side, where tin wets to the PCB pad.

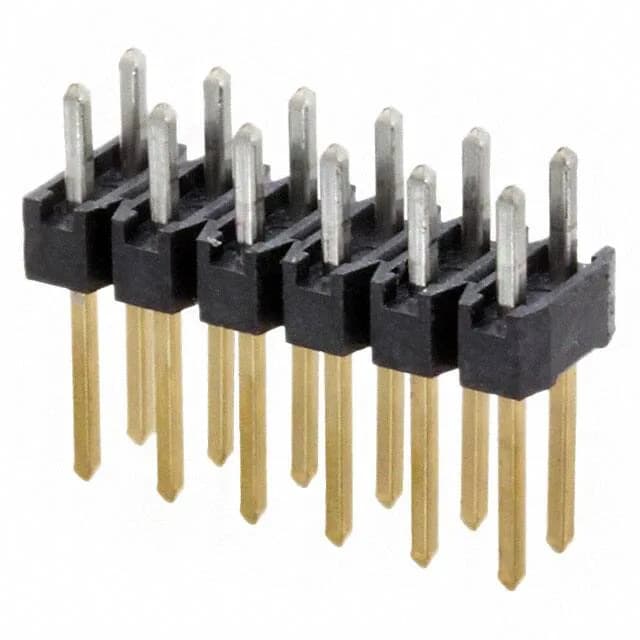

5-146257-6 TE AMPMODU Mod II Header, 12 Pos, 2.54mm
MPN5-146257-6
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 12 Positions, 0.100" (2.54mm) Pitch, Through Hole, Gold Mating Finish, 3A, Black LCP Housing, UL94 V-0
$2.8700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pinout of 5-146257-6?
It is a dual-row, 12-position header with all positions loaded. The unshrouded design allows mating with any 0.025" square-post receptacle.
What is the closest pin-compatible alternative to 5-146257-6 in the AMPMODU Mod II family?
Within the same series, the main alternative is a different position count or plating option. For a 12-position, dual-row, gold-plated header, this exact order code is the one specified. TE's base number 146257 covers multiple breakaway variants; verify the position count and contact finish against the BOM before substituting.
