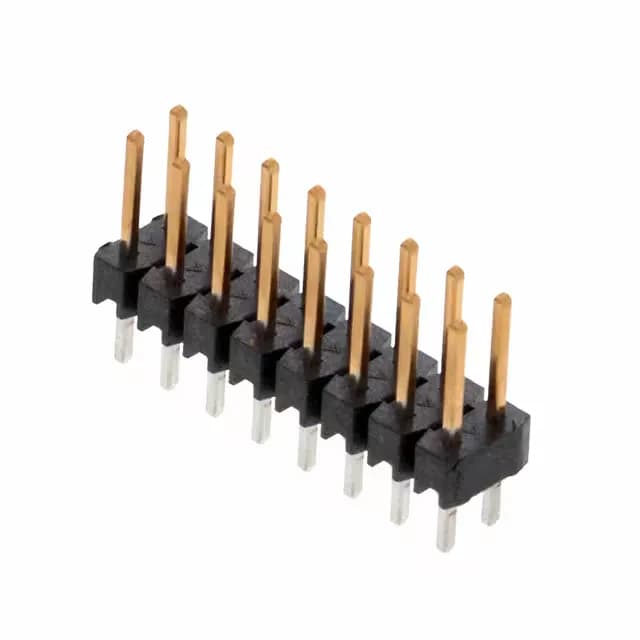

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, 16 positions, 2 rows, 0.100" (2.54mm) pitch, through hole, solder termination, gold mating finish 30.0µin (0.76µm), tin post, black LCP housing UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0.230" (5.84mm) mating pin length and 0.120" (3.05mm) solder post length are standard for through-hole soldering to a 1.6mm board.
The primary difference is in the contact post length — 1-1871673-2 has a 0.130" post vs 0.120" here — which affects board thickness compatibility. Both are active and ROHS3 compliant.
5-146257-8 is available through independent distribution. No stock-holding claim is made; sourced per RFQ.
The closest functional second-source is 1-1871673-2, also a 16-position, 2-row AMPMODU Mod II breakaway header with the same pitch and gold mating finish. The post length differs slightly (0.130" vs 0.120"), so verify board thickness compatibility before substituting.
Yes, 5-146257-8 is ROHS3 compliant.
