TE Connectivity AMPMODU Mod II, Header, Breakaway, 8 Positions, 2.54mm Pitch, Through Hole, Gold Mating Finish, 3A, -65°C to 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Overall contact length | 0.410\" (10.41mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 5.00µin (0.127µm) |

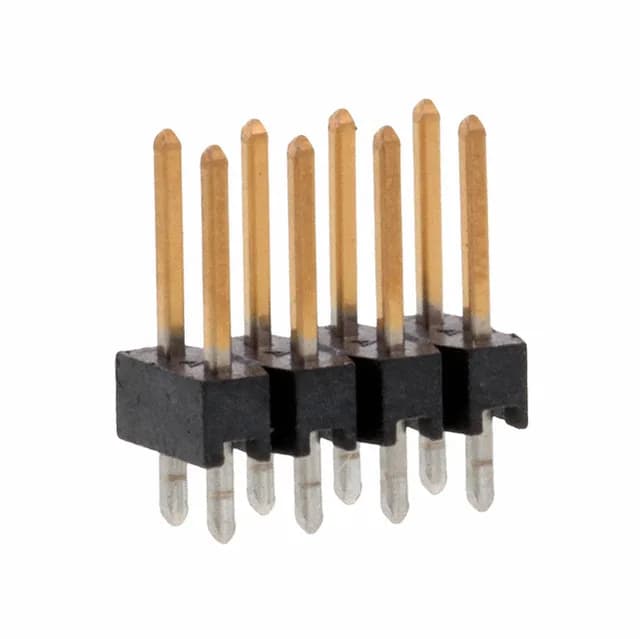

The 5-146259-4: It mates with matching AMPMODU receptacles for board-to-board or wire-to-board connections. The male square pins are gold-plated on the mating surface and tin-plated on the solder posts.
The 1376779-2 is a close functional alternative — same 8 positions, 0.100-inch pitch, gold mating finish, and UL94 V-0 LCP housing. Both are active and through-hole mount.
