TE Connectivity AMPMODU Mod IV receptacle, order code 5-147102-8, 16 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

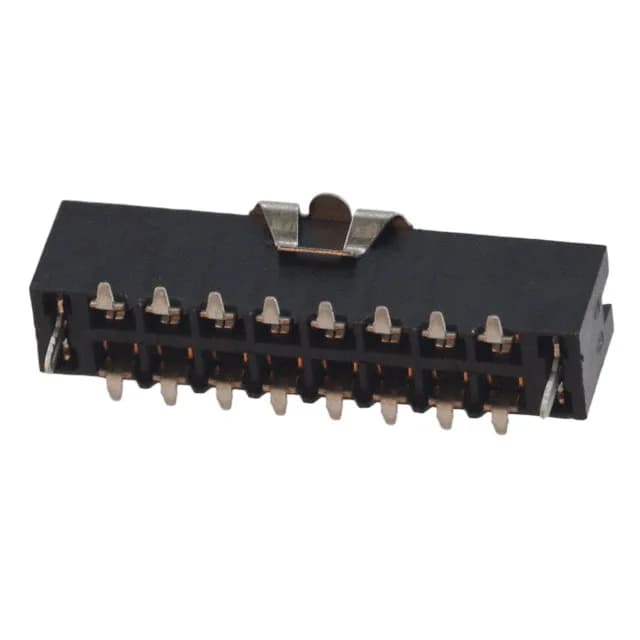

The 5-147102-8 is the 16-position dual-row member of TE's AMPMODU Mod IV receptacle line, a board-to-board or cable style with push-pull fastening. The surface-mount termination includes board locks and a pick-and-place feature for automated assembly.
The insulation height is 0.265" (6.73mm). Board locks on the SMT tails hold the receptacle during reflow and resist shear from cable strain in the mated assembly.
RoHS and REACH compliance documentation is available from TE Connectivity for this part number.
