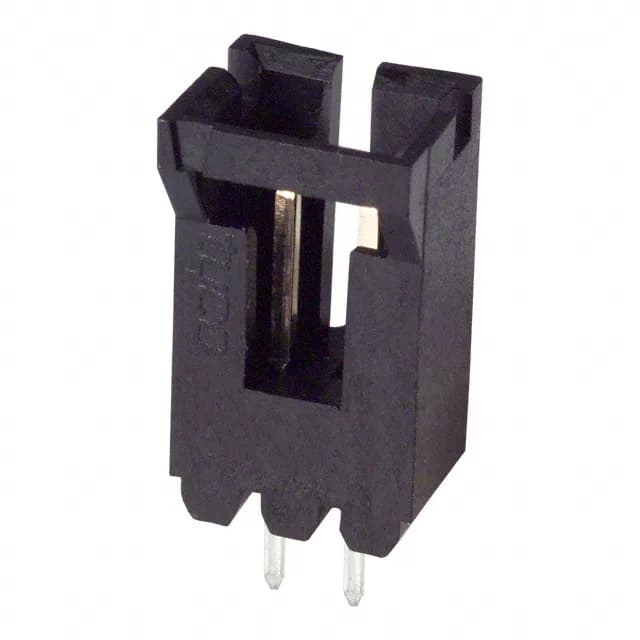

TE Connectivity AMPMODU MTE header, order code 5-147245-1, 2 positions, single row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through hole, press-fit/solder termination, shrouded - 4 wall.
TE 5-147245-1 AMPMODU MTE Header, 2 Pos, 0.100"
MPN5-147245-1
Active
TE Connectivity AMPMODU MTE header, order code 5-147245-1, 2 positions, single row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through hole, press-fit/solder termination, shrouded - 4 wall.
$1.2331Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.538\" (13.67mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 5-147245-1 in this Pin Headers, Sockets & Housings family?
No pin-compatible alternative is on record.
