TE Connectivity AMP Connectors 5-147278-1 — Pin Headers

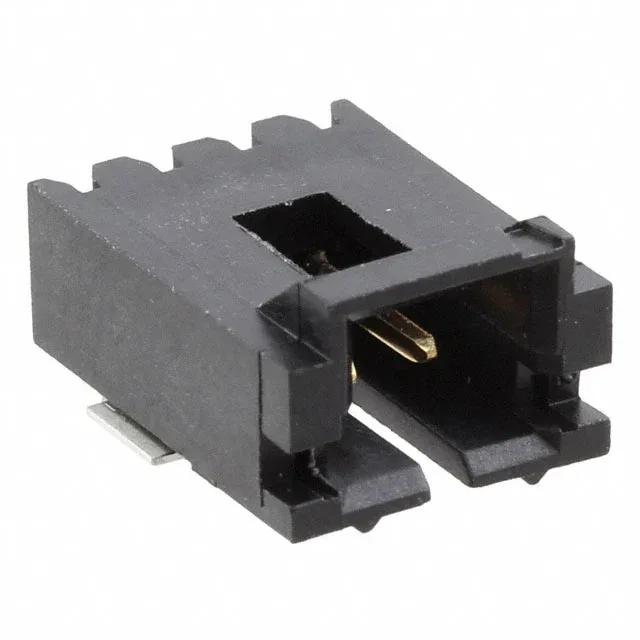

5-147278-1 TE Connectivity AMP Connectors Pin Header, 2.54mm

MPN5-147278-1
Active

TE Connectivity AMP Connectors AMPMODU MTE, Header, 2 Positions, 0.100" (2.54mm) Pitch, Surface Mount, Right Angle, Gold Mating, Board Lock, Active

$3.4609Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-147278-1 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-147278-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock, Keying Slot, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions2
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

2-position SMD right-angle header for tight board-edge routing

This 5-147278-1 is a 2-position, single-row header from the AMPMODU MTE series, pitched at 0.100" (2.54mm) — the standard grid that keeps PCB routing straightforward. The surface-mount, right-angle orientation lets you place the connector flush against the board edge, saving Z-height in a shallow enclosure. That gold layer handles repeated mate cycles in field-service gear; the tin tail wets reliably during reflow.

Board lock and keying slot keep the assembly secure

The keying slot in the shroud prevents mismating with a different-coded receptacle — useful if your harness has several nearby MTE connectors. Fastening type is a latch holder.

Frequently asked questions

What is the mating connector for 5-147278-1?

This header mates with AMPMODU MTE receptacle housings that accept crimp terminals. The 2.54mm pitch, single-row layout, and latch holder fastening are the matching criteria. Confirm the receptacle part number against your harness design — the keying slot ensures only the correct-coded mate engages.

Is 5-147278-1 RoHS compliant?

Yes, the part is listed as RoHS Compliant.
