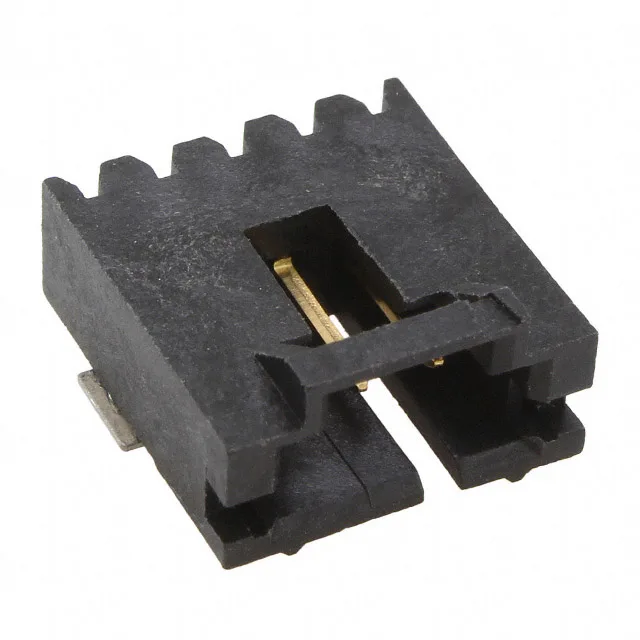

TE Connectivity AMPMODU MTE header, 3-position single-row, 0.100" (2.54mm) pitch, surface-mount right-angle, shrouded 4-wall with board lock and keying slot, gold-plated mating contacts, rated 3A per circuit.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The mating contacts are plated with 15.0 µinch (0.38 µm) gold over nickel, rated for repeated mating cycles in environments where corrosion resistance matters — automotive, medical, telecom, and general-purpose equipment all fit the application list. The solder tails get a 100.0 µinch (2.54 µm) tin finish for reliable solder joint formation.
Each contact is rated 3 A continuous. The keying slot adds polarization to avoid mis-mating in multi-connector panels.
The latch holder on this header locks into the corresponding slot on the receptacle housing.
