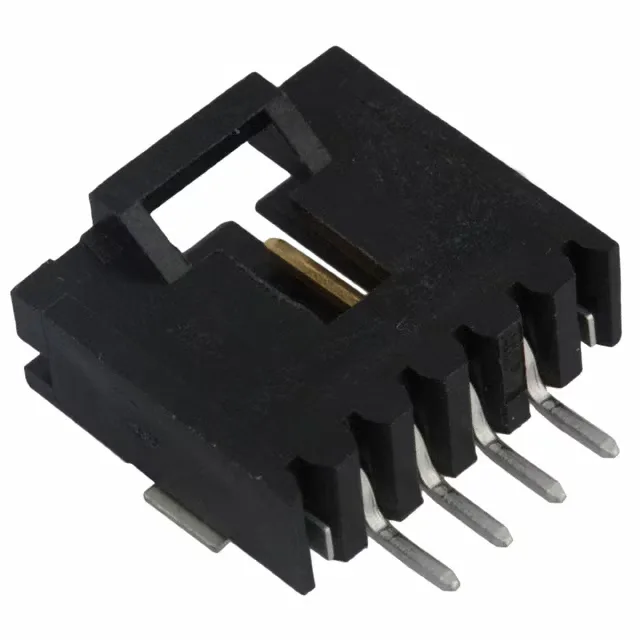

TE Connectivity AMPMODU MTE, Header, 4 Positions, 0.100" (2.54 mm) Pitch, Surface Mount, Right Angle, Gold Mating Finish, 3 A, Shrouded - 4 Wall, Board Lock, Keying Slot
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The tin-plated solder tails (100.0 µinch) are compatible with standard reflow profiles. A keying slot prevents incorrect insertion of the mating half.
The solder retention features add shear-force resistance from cable strain after assembly — important for a right-angle connector where the cable exit pulls laterally against the solder joints.
The mating pitch is 0.100" (2.54 mm), standard for AMPMODU MTE headers.
Yes, it is RoHS compliant.
Yes, the listed applications include automotive, along with general purpose, medical, and telecommunications.
This header is rated 3 A per contact, typical for signal-level interconnects in the AMPMODU MTE series.
