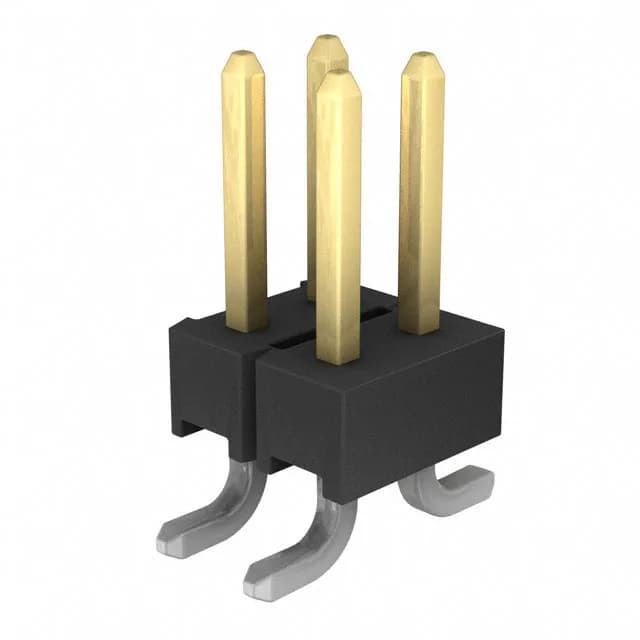

TE Connectivity AMPMODU Mod II header, breakaway, order code 5-147279-4, 4 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, surface-mount, solder termination, unshrouded, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-147279-4 is the 4-position member of TE's AMPMODU Mod II breakaway header line, unshrouded with push-pull fastening for board-to-board or cable interconnects. It carries gold-plated mating contacts rated at 30.0µin (0.76µm) over copper alloy and mounts surface-mount with solder termination.
The style is Board to Board or Cable, and the series is AMPMODU Mod II.
