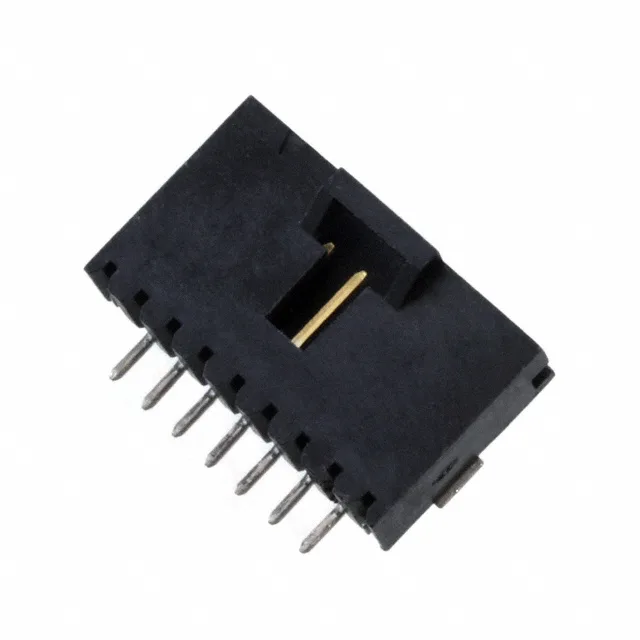

TE Connectivity AMPMODU MTE header, order code 5-147323-6, 7 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-147323-6 is the 7-circuit member of TE's AMPMODU MTE header line, a single-row shrouded header rated for board-to-board or cable connections. It carries gold-plated mating contacts rated 3 A, mounts surface-mount right-angle, and includes a board lock, keying slot, and solder retention for secure attachment.
A board lock and solder retention keep the header in place during reflow and service.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors per the standard datasheet package.
