Current and Contact Specs
The 5-147324-4: Tin is adequate for signal-level circuits in moderate environments; the current rating stays within the temperature rise limit of the UL94 V-0 thermoplastic housing.

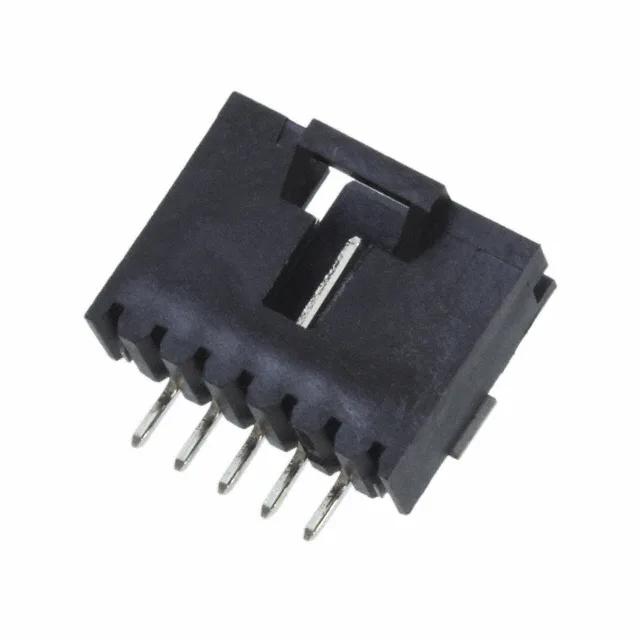

5-147324-4 TE Connectivity AMPMODU MTE Header, 5 Pos
MPN5-147324-4
Active
TE Connectivity AMP Connectors AMPMODU MTE header, 5 positions, 0.100" (2.54mm) pitch, shrouded - 4 wall, surface mount right-angle, tin-plated male pins, board lock and keying slot, UL94 V-0, -65°C ~ 105°C, 3 A.
$2.5854Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the mating connector for 5-147324-4?
This header mates with a matching AMPMODU MTE receptacle housing (same series, 5 positions, 0.100" pitch). The keying slot ensures correct orientation.
