TE Connectivity AMPMODU MTE header, 7-position single-row, 0.100" (2.54mm) pitch, surface mount right-angle, shrouded 4-wall, board lock, keying slot, tin-plated contacts rated 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

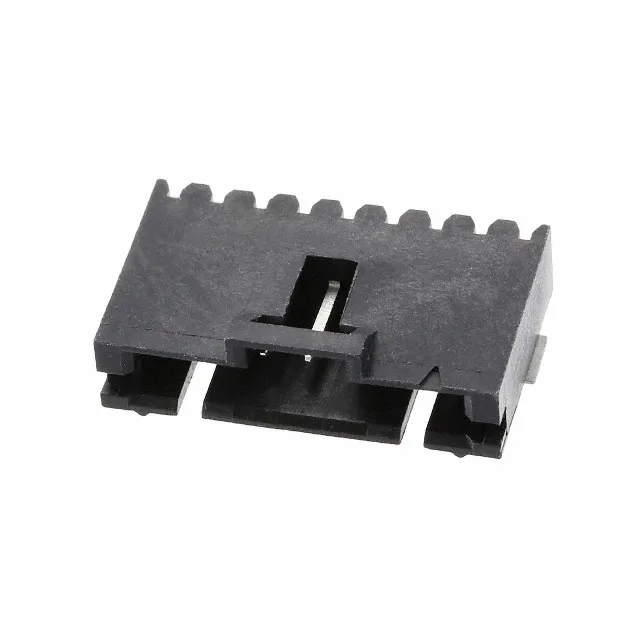

The 5-147324-6 is a 7-position, single-row header from the AMPMODU MTE series, terminated in surface mount right-angle orientation.
Rated 3A per contact with tin-plated mating surfaces (100.0µin thickness).
A keying slot in the housing prevents mis-mating with receptacles of different circuit counts or key positions — useful in multi-connector panels where a wrong mate could short adjacent pins.
Yes. The 7-position single-row layout mates with a 7-way AMPMODU MTE receptacle or any 2.54mm-pitch female housing with the same circuit count.
Yes. The header includes a board lock feature that anchors the component during reflow soldering and provides mechanical retention against cable strain.
