TE Connectivity AMP Connectors 5-1473574-4 — Wire-to-Board Connectors

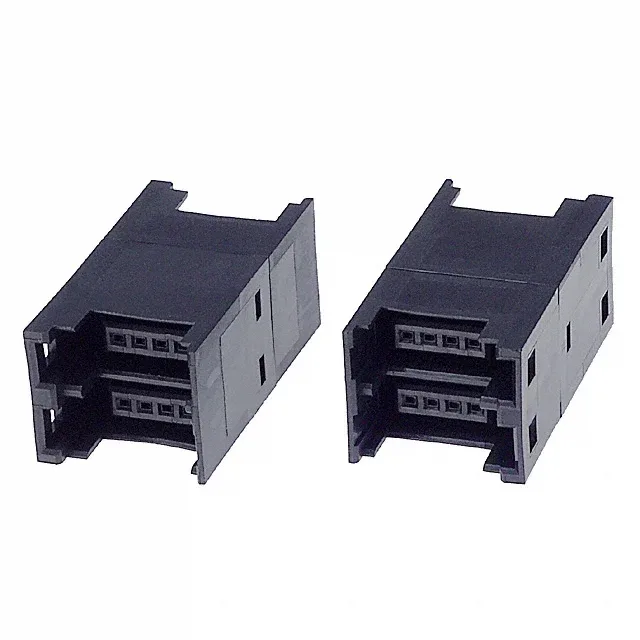

TE RITS 5-1473574-4 Inline Adapter, 4 Pos, 2mm Pitch

MPN5-1473574-4
Active

TE Connectivity RITS series, 5-1473574-4, 4-position inline adapter, 2 rows, 0.079" (2.00mm) pitch, free-hanging, receptacle-to-receptacle, bulk.

$7.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRITS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-1473574-4 specifications
ParameterValue
SeriesRITS
MountingFree Hanging (In-Line)
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.256\" (6.50mm)
Rows2
Positions4
Convert to (Adapter end)Receptacle, Female Sockets
Convert from (Adapter end)Receptacle, Female Sockets

Product details

The 5-1473574-4: Both ends accept female socket contacts, making it useful for extending a cable run or converting a harness interface without changing the mating half. The 0.079" (2.00mm) pitch and dual-row layout with 0.256" (6.50mm) row spacing give it a compact footprint for signal-level interconnects in free-hanging, in-line applications — no board mounting required.

Because both adapter ends are receptacles with female sockets, this part mates with any RITS-series plug or header that carries male pins at the same 0.079" (2.00mm) pitch.

Frequently asked questions

What is the pitch of 5-1473574-4?

The pitch is 0.079" (2.00mm) across a dual-row layout with 0.256" (6.50mm) row spacing.
