The 5-147377-2: This is a 20-position, dual-row SMT header on a 1.27mm (0.050-inch) pitch with a 2.54mm row spacing. The contact mating length is 0.125 inches (3.18mm), and the insulation height stands 0.435 inches (11.05mm) above the board, which sets the z-height budget for the mating receptacle.

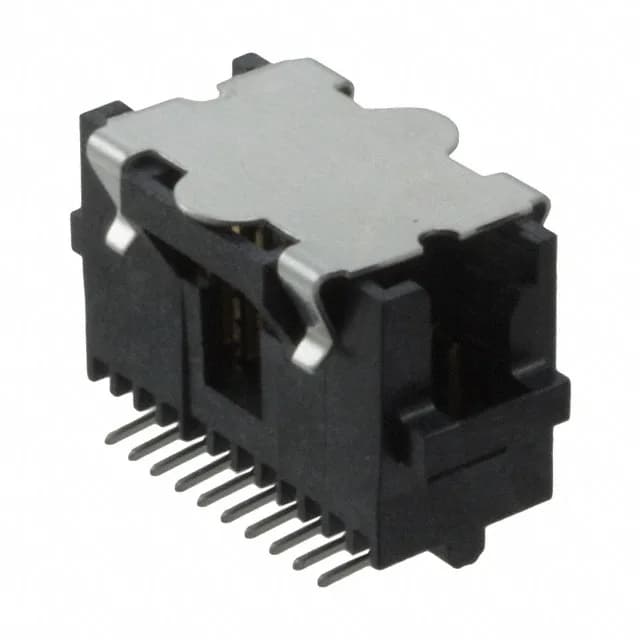

5-147377-2 TE Connectivity AMPMODU System 50 Header SMD
MPN5-147377-2
Active
TE Connectivity AMPMODU System 50 header, 5-147377-2, SMT, 20 positions, 1.27mm pitch, dual-row, shrouded - 4 wall, latch holder, gold mating finish, UL94 V-0, -65°C ~ 105°C, Active
$7.1100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 5-147377-2 RoHS compliant?
Yes, it is listed as ROHS3 Compliant.
Where can I buy 5-147377-2?
Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
