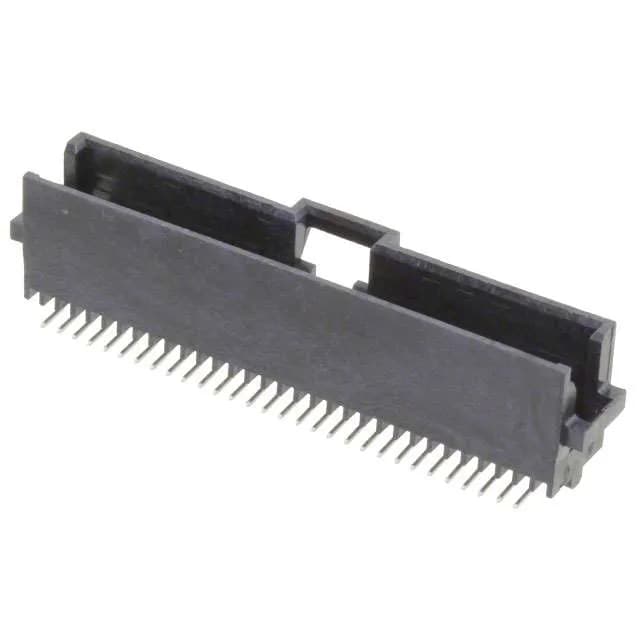

TE Connectivity AMPMODU System 50 header, 5-147377-6, 60-position dual-row SMT, 1.27mm pitch, shrouded 4-wall, gold-plated mating contacts, rated 30VAC, -65°C to 105°C
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-147377-6 is a 60-position, dual-row SMT header from the AMPMODU System 50 series, with a 0.050" (1.27mm) mating pitch that keeps the board footprint tight for high-density routing.
It is ROHS3 Compliant and manufactured by TE Connectivity AMP Connectors under the base product number 147377.
The mating pitch is 0.050" (1.27mm), with a row spacing of 0.100" (2.54mm). That 1.27mm pitch is the key footprint dimension for PCB layout.
Yes, the header is shrouded on all four sides (Shrouded - 4 Wall), which protects the pins and guides the mating connector into alignment.
