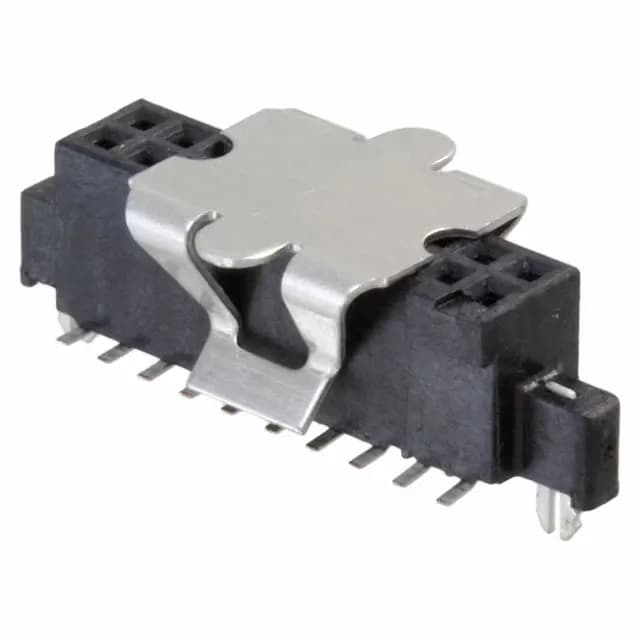

TE Connectivity AMP Connectors AMPMODU 50/50 Grid receptacle, order code 5-147384-2, 20 positions, dual row, 1.27 mm pitch, 0.5 A per contact, 30 VAC, gold mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.187\" (4.75mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Mated stacking heights | 6.35mm, 8.13mm, 9.91mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-147384-2: The 1.27 mm pitch and 1.27 mm row spacing suit dense board layouts; surface-mount termination with board locks and a pick-and-place feature support automated assembly.
The 5-147384-2 supports three mated stacking heights — 6.35 mm, 8.13 mm, and 9.91 mm — at the same 1.27 mm pitch, allowing the board-to-board gap to be tuned without changing the footprint.
