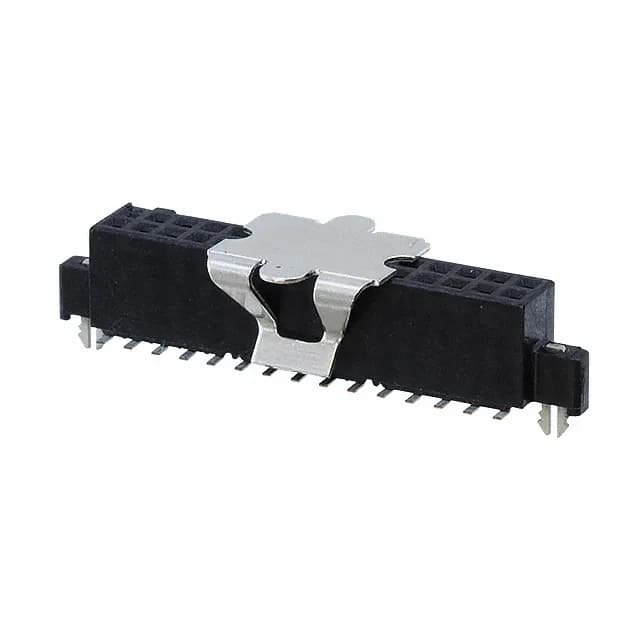

TE Connectivity AMP Connectors AMPMODU 50/50 Grid receptacle, 30 positions, 0.050" (1.27 mm) pitch, dual-row, Gold-plated mating contacts, SMT with board lock, rated 0.5 A per contact, 30 VAC.
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.187\" (4.75mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Mated stacking heights | 6.35mm, 8.13mm, 9.91mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0.050" (1.27 mm) mating pitch and 0.050" (1.27 mm) row spacing pack 30 circuits into a compact footprint, while the three mated stacking heights — 6.35 mm, 8.13 mm, and 9.91 mm — let the same PCB layout serve multiple mezzanine gaps.
The Pick and Place feature means the reel packaging is vacuum-nozzle compatible for automated assembly.
Yes, it is ROHS3 compliant.
