TE Connectivity AMP Connectors 5-147384-5 — Female Socket Headers

5-147384-5 TE Connectivity AMPMODU 50/50 Grid 50-Position

MPN5-147384-5
Active

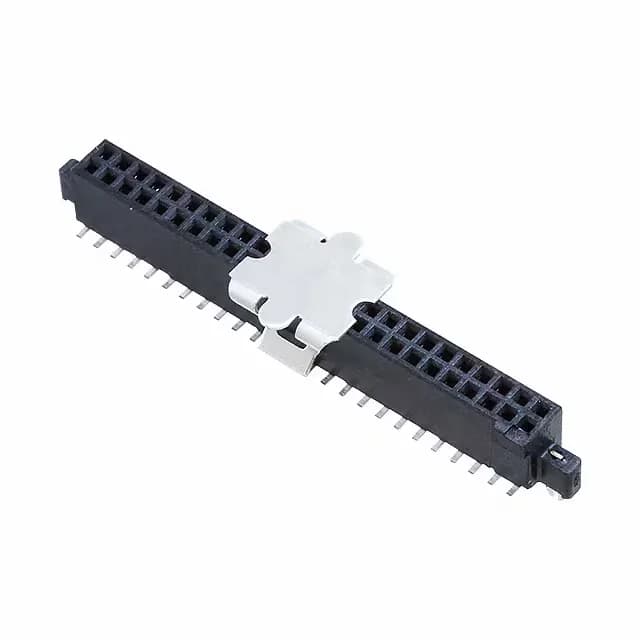

TE Connectivity AMP Connectors AMPMODU 50/50 Grid, 5-147384-5, 50-position dual-row receptacle, 1.27mm pitch, 0.5A per contact, 30µin gold mating surface, surface-mount with board lock and pick-and-place cap.

$6.4629Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-147384-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-147384-5 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating30VAC
Current rating0.5A per Contact
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.187\" (4.75mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

5-147384-5 additional specifications
ParameterValue
Mated stacking heights6.35mm, 8.13mm, 9.91mm
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Lock, Pick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions50
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Signal-Density Mezzanine Receptacle for Tight Board Stacks

The 5-147384-5: The 1.27mm pitch and 1.27mm row spacing pack 50 circuits into a compact footprint — expect a board layout that routes traces between pads with care, especially on inner layers. Three mated stacking heights — 6.35mm, 8.13mm, and 9.91mm — give the board designer flexibility to set the mezzanine gap by choosing the matching pin header.

SMT Assembly with Board Lock and Pick-and-Place Cap

The pick-and-place cap (included on tape) allows vacuum handling without damaging the contacts.

Frequently asked questions

What is the pitch and number of rows of the 5-147384-5?

The 5-147384-5 has a 1.27mm mating pitch, dual rows with 1.27mm row spacing, and 50 positions total — all positions loaded.
