Board-to-Board Fit with 0.050-inch Pitch Discipline

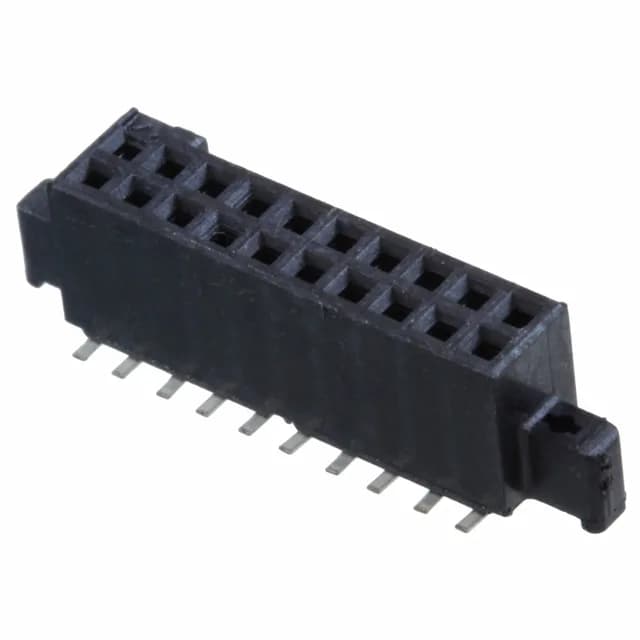

The 5-147413-3: The board lock and pick-and-place feature secure the part during SMT reflow and prevent shear lift from cable strain — a detail that matters when the receptacle sits on a mezzanine board subjected to vibration. Mated stacking heights of 6.35 mm, 8.13 mm, and 9.91 mm give the board layout engineer three z-height options without changing the receptacle footprint — useful when the top board swings in or out of the enclosure.
Available on Tape & Reel or Cut Tape for volume pick-and-place or prototype runs.
How It Compares — 0.050-inch vs 0.100-inch Pitch Receptacles
For a 20-position header, the 5-147413-3 packs nearly twice the linear density. The 1376775-2 and 1376775-3 are 5- and 3-position receptacles respectively, also gold-plated but at 8.00 µinch (0.203 µm) — a thinner flash suited for infrequent mating, not the 500-cycle class the 5-147413-3 serves.
