TE Connectivity AMP Connectors 5-147741-6 — Pin Headers, Sockets & Housings

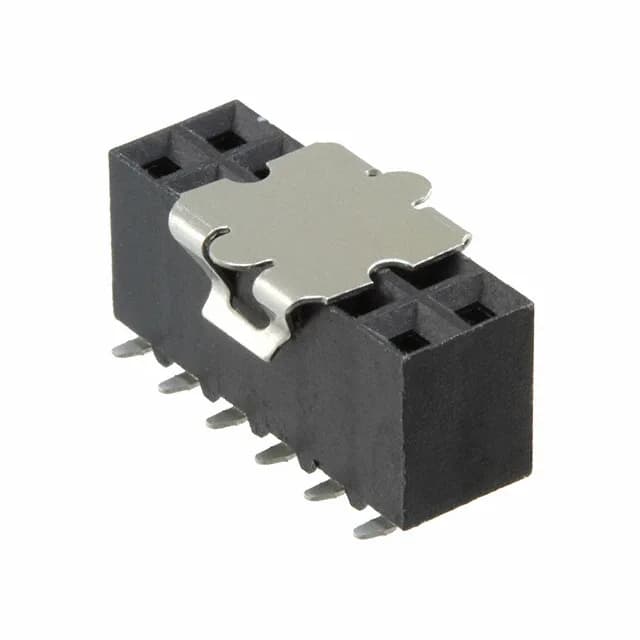

5-147741-6 TE AMPMODU Mod IV Receptacle, 12 Pos

MPN5-147741-6
Active

TE Connectivity AMPMODU Mod IV receptacle, order code 5-147741-6, 12 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold-plated mating contacts, surface-mount, solder termination.

$1.7400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-147741-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-147741-6 key specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Current rating2A
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.265\" (6.73mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

5-147741-6 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesPick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

12-position dual-row SMT receptacle

The 5-147741-6: The push-pull fastening and bottom or top entry style allow board-to-board or cable mating without a locking latch.

Board-fit and temperature range

The 0.265" (6.73mm) insulation height leaves clearance for pass-through routing under the receptacle. Rated -65°C to 125°C operating range with a UL94 V-0 glass-filled polyester housing, the receptacle suits environments that require flame-rated materials and a wide thermal envelope.

Contact plating and sourcing

The Pick and Place feature supports automated assembly.

Frequently asked questions

What is the mating half for this receptacle?

Confirm the header's position count and orientation for the application.

What compliance documentation is available?

RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors.
