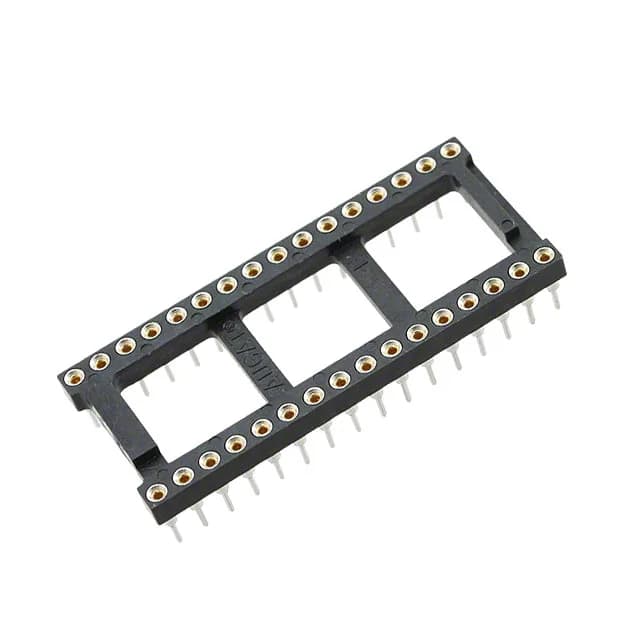

TE Connectivity AMP 800 series DIP socket header, order code 5-1571552-0, 32 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole solder termination, open frame, tube package.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 20.0µin (0.51µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
| Number of positions or pins | 32 (2 x 16) |
The 5-1571552-0: No official pin-compatible successor or cross-reference is documented from the manufacturer. Availability is limited to existing distributor or surplus-channel stock — confirm quantity and lead time at RFQ. A board spin may be required for a functional replacement.
