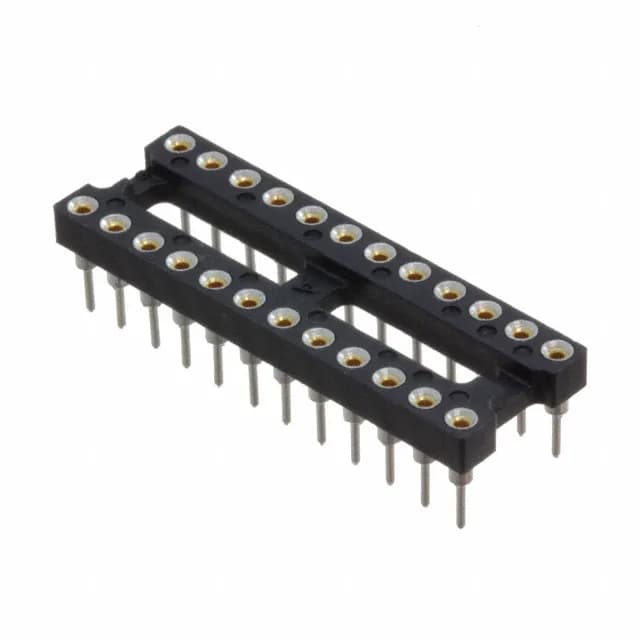

TE Connectivity AMP Connectors 800 Series DIP header, order code 5-1571552-6, 24 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole solder termination, open frame.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 20.0µin (0.51µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
| Number of positions or pins | 24 (2 x 12) |
The 5-1571552-6: The open-frame housing is molded from PCT/polyester rated UL94 V-0.
No official successor or pin-compatible alternative is listed from the manufacturer. Sourcing is limited to surplus channels; quantities are confirmed per RFQ.
The housing material is rated UL94 V-0. RoHS and REACH status are not explicitly recorded in the available specification data.
