5-1634500-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5-1634500-0 BNC Plug, 50 Ohm, 4 GHz

MPN5-1634500-0
Obsolete

TE Connectivity ZDC Greenpar series BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination for RG-174A/188A/316, bayonet lock, gold center contact, 500 mating cycles, bulk.

$4.1700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634500-0 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174A, 188A, 316
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The TE Connectivity 5-1634500-0 is officially listed as Obsolete. It is not in current factory production. No official direct-replacement order code is on record from TE for this specific part number.

50 Ohm BNC Plug, 4 GHz — RG-174/188/316 Kit

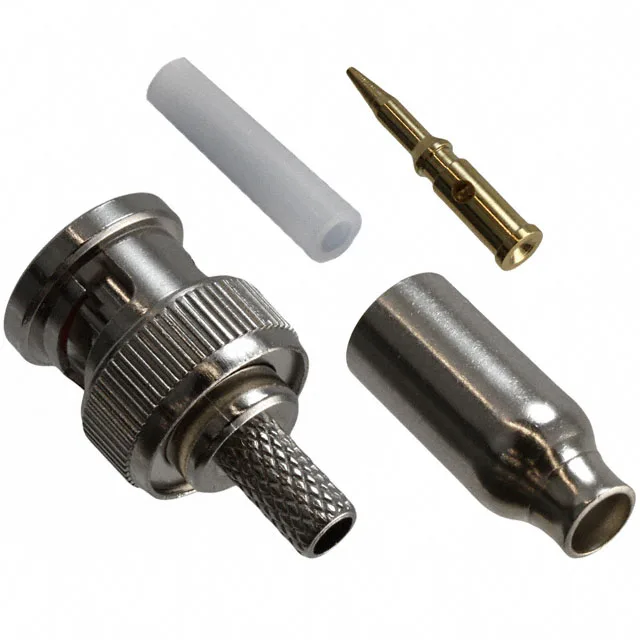

The kit includes 4 pieces: the connector body, one gold-plated brass center contact, one ferrule, and one sleeve — everything needed for a field-terminated crimp assembly on RG-174A or RG-316 coax.

Crimp Termination — Cable Group Fit

The specified cable group is RG-174A, RG-188A, and RG-316 — all 50 Ohm flexible coax with a nominal 0.100-inch jacket diameter. The ferrule and sleeve in the kit match the braid diameter of these cables.

Frequently asked questions

Where can I buy 5-1634500-0 available via RFQ confirmation?

The 5-1634500-0 is obsolete and not in current factory production. Submit an RFQ for a current sourcing status.

Is 5-1634500-0 obsolete?

Yes, the TE Connectivity 5-1634500-0 is officially listed as Obsolete.

What cable does 5-1634500-0 fit?

This BNC plug is designed for RG-174A, RG-188A, and RG-316 coaxial cables. The kit includes the ferrule and sleeve sized for the braid diameter of these cables.
