TE Connectivity ZDC BNC Plug 5-1634500-1, 50 Ohm, 4 GHz

MPN5-1634500-1
Obsolete

TE Connectivity ZDC, Greenpar series BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp termination, bayonet lock, for RG-174A/188A/316 cable, bulk pack includes connector + contact + ferrule + sleeve.

$3.2100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634500-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174A, 188A, 316, KX3B, KX22A, URM-95
Operating temperature-55°C~85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

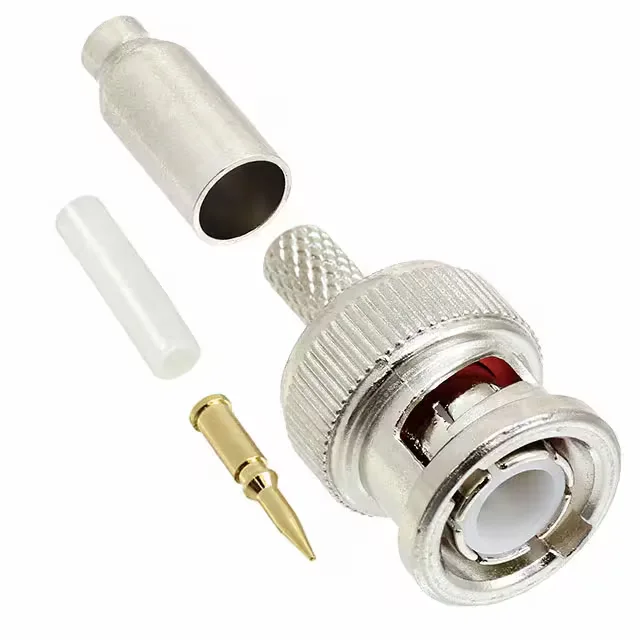

The 5-1634500-1: It comes as a kit: the zinc-alloy body with nickel finish, a gold-plated brass centre pin, a crimp ferrule, and a PMP dielectric sleeve. The bayonet lock mates quickly without tools and holds positive retention through 500 cycles.

This plug is designed for thin flexible coax: RG-174A, RG-316, KX3B, KX22A, and URM-95.

RF Performance at a Glance

At 50 Ohm characteristic impedance, the 5-1634500-1 holds insertion loss to 0.2 dB through 4 GHz. The 500 V rating is far above the RF signal levels this connector typically carries — the limit is the air gap and dielectric creepage, not the contact.

Frequently asked questions

Does 5-1634500-1 work with RG174 cable?

Yes, RG-174A is one of the listed cable groups for this plug, along with RG-188A, RG-316, KX3B, KX22A, and URM-95. The kit includes the contact, ferrule, and sleeve for a complete crimp termination.

What is the impedance of 5-1634500-1?

The characteristic impedance is 50 Ohm, standard for BNC RF interconnects in test, telecom, and instrumentation applications.
