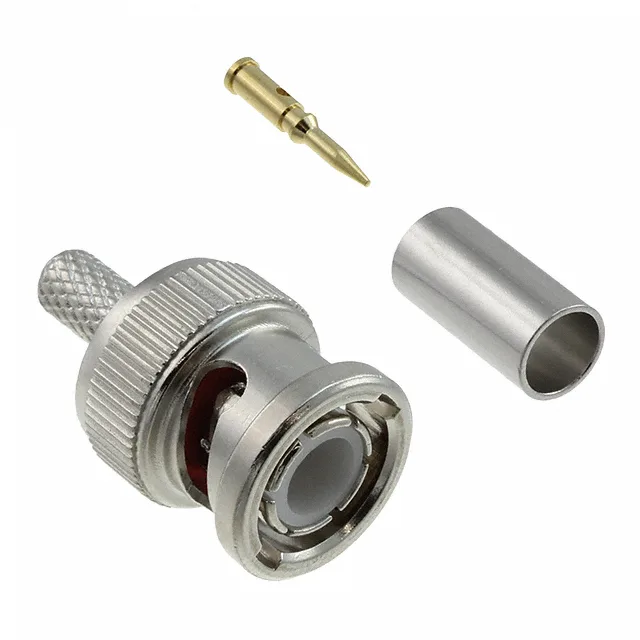

5-1634500-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5-1634500-2 BNC Plug, 50 Ohm, 4 GHz, Obsolete

MPN5-1634500-2
Obsolete

TE Connectivity ZDC, Greenpar series BNC plug, male pin, 50 Ohm, 4 GHz max, 500 mating cycles, crimp termination, free-hanging, nickel body, gold center contact.

$2.6700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634500-2 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-58C, 141A, 303, Belden 9907, KX15, URM43, 76
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Obsolete — Sourcing Reality for 5-1634500-2

No formal replacement part number is published by TE for this connector. If you are maintaining an existing harness design, the practical move is to qualify a functionally equivalent BNC plug from the same ZDC / Greenpar family or a drop-in 50 Ohm BNC from another manufacturer — but that cross-reference is not documented here and must be verified against your cable type and performance requirements.

This plug accepts RG-58C, 141A, 303, Belden 9907, KX15, URM43, and 76 coax — the common 50 Ohm small-diameter cables used in test and low-power RF. The crimp sleeve and center contact are included; you need a hex crimp tool with the correct die for the cable jacket OD. The silver-colored housing and gold-plated brass center contact are standard for indoor-rated BNC plugs — no IP seal, so keep this out of washdown or outdoor direct-exposure runs.

Frequently asked questions

What is the replacement for 5-1634500-2?

TE has not issued an official replacement part number for the 5-1634500-2. If your BOM requires a drop-in BNC plug, you will need to cross-reference a functionally equivalent 50 Ohm BNC from the same ZDC / Greenpar family or another manufacturer, verifying cable compatibility and performance yourself.

What cables does the 5-1634500-2 work with?

The 5-1634500-2 is designed for RG-58C, 141A, 303, Belden 9907, KX15, URM43, and 76 coax cables.
