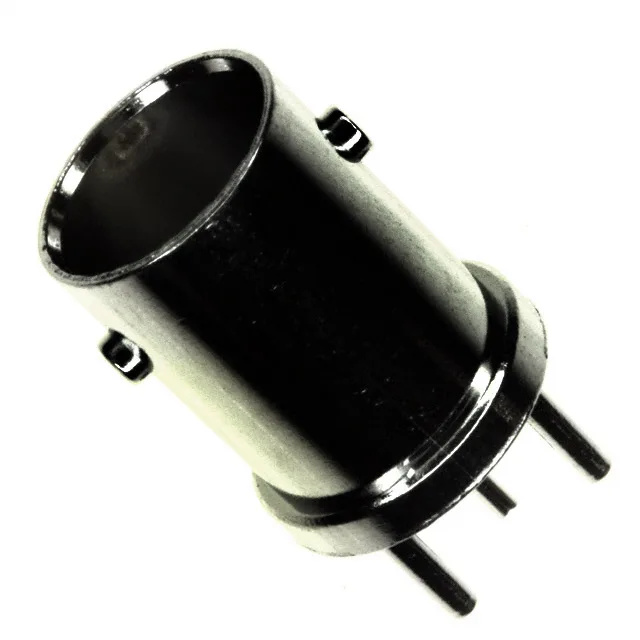

5-1634503-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar ZDC BNC Jack, 75 Ohm, 2 GHz, 5-1634503-3

MPN5-1634503-3
Obsolete

TE Connectivity Greenpar ZDC BNC jack, 75 Ohm, 2 GHz, 500 V, 500 mating cycles, through-hole solder, gold-plated centre contact, nickel-plated zinc alloy body.

$5.5900Ref. price · indicative, final on quote
5-1634503-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634503-3 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 5-1634503-3: It carries a single port, female socket interface, and is rated to 2 GHz — the 75 Ohm impedance makes it a fit for video distribution, broadcast, and broadband data systems rather than the 50 Ohm RF test bench.

The 2 GHz maximum frequency at 75 Ohm defines the usable bandwidth for composite video, SDI, and broadband RF distribution. The 75 Ohm characteristic impedance is the standard for video and cable-TV infrastructure — mating this jack with a 50 Ohm cable or connector will create a mismatch that degrades return loss and signal integrity.
