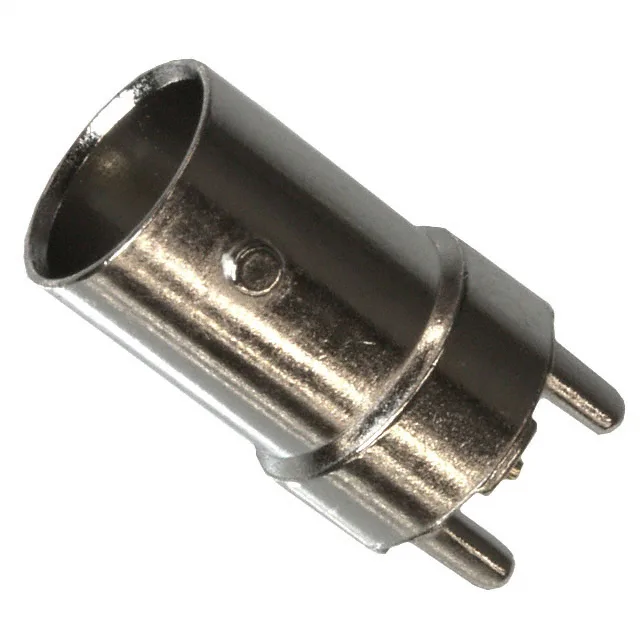

TE Connectivity 5-1634506-2 BNC Jack, 75 Ohm, 2 GHz

MPN5-1634506-2
Obsolete

TE Connectivity ZDC/Greenpar BNC jack, female socket, 75 Ohm, 2 GHz max, 500 V, through-hole, solder termination, bayonet lock, nickel-plated zinc alloy body, gold-plated phosphor bronze centre contact, 500 mating cycles.

$5.9100Ref. price · indicative, final on quote
5-1634506-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634506-2 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Operating temperature-55°C~85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 75 Ohm impedance sets it apart from the more common 50 Ohm BNCs, making it the right fit for video distribution, CCTV, and telecom baseband signal paths where the characteristic impedance of the cable and system is 75 Ohm. It carries a 2 GHz maximum frequency and a 500 V voltage rating, with a gold-plated phosphor bronze centre contact rated for 500 mating cycles. The body is nickel-plated zinc alloy, and the dielectric is polymethylpentene (PMP).

There is no official replacement order code on record.
