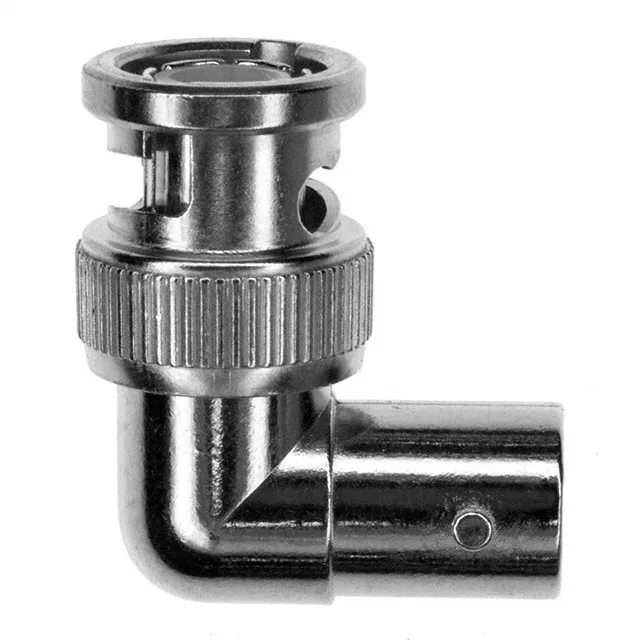

5-1634526-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5-1634526-1 BNC to BNC Right Angle Adapter, 50 Ohm

MPN5-1634526-1
Obsolete

TE Connectivity BNC to BNC adapter, plug to jack, right-angle, 50 Ohm, nickel-plated zinc alloy body, gold-plated centre contacts, bulk.

$4.3400Ref. price · indicative, final on quote
5-1634526-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634526-1 Technical Specifications
ParameterValue
Adapter typePlug to Jack
Mounting typeFree Hanging (In-Line), Right Angle
Adapter seriesBNC to BNC
Fastening typeBayonet Lock, Bayonet Lock
Conversion typeSame Series
Body materialZinc Alloy
Dielectric materialPolyethylene (PE)
Center contact materialBrass; Phosphor Bronze
StyleRight Angle
PackageBulk
Impedance50 Ohms
Body finishNickel
Center genderFemale to Male
Center contact platingGold
Convert to (Adapter end)BNC Jack, Female Socket
Convert from (Adapter end)BNC Plug, Male Pin

Product details

Adapter Identity and Signal Path

The 5-1634526-1: The right-angle body lets you route a cable perpendicular to the mating axis — useful in tight rack spaces or where a straight adapter would strain the connector interface.

Build and Materials

Housing is zinc alloy with a nickel finish — standard for RF adapter bodies that need shielding and corrosion resistance. The centre contacts are gold-plated over brass (pin side) and phosphor bronze (socket side), giving good mating cycle life for field-swapped connections. Dielectric is polyethylene, a common low-loss insulator at sub-GHz frequencies. Fastening uses bayonet lock on both ends, so it mates and unmates with a quarter-turn — no tools needed.

Obsolete — Sourcing This Part

Frequently asked questions

Where can I buy the 5-1634526-1 BNC adapter?

The 5-1634526-1 is obsolete, but we source it through independent distribution channels. Submit an RFQ and we will confirm current availability and pricing at quote time — no stock-holding guarantee, quoted per order.

Is 5-1634526-1 obsolete and what is the replacement?

Yes, TE Connectivity lists the 5-1634526-1 as obsolete. For new builds, select a current-production BNC right-angle adapter with the same plug-to-jack conversion and 50 Ohm rating.
