BNC T-Adapter, 50 Ohm, Jack-to-Jack — Free-Hanging In-Line

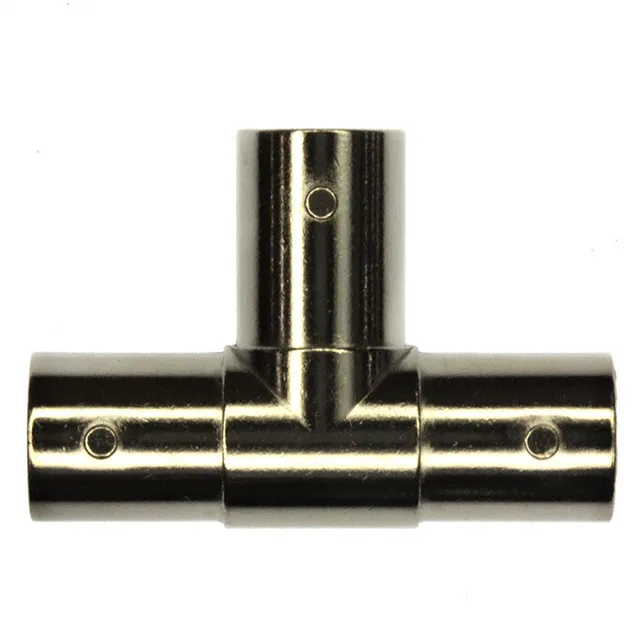

The TE Connectivity 5-1634535-1 is a BNC-to-BNC T-adapter, configured as a dual jack (female-to-female) in a T-shape. It is a same-series adapter — both ends are BNC — designed to split one signal path into two without a separate splitter. The impedance is 50 Ohms, matching standard BNC cabling for RF, video, and test equipment. The body is nickel-plated zinc alloy; the center contacts are gold-plated phosphor bronze. Dielectric material is polymethylpentene (PMP). Fastening is bayonet lock on both legs.
Fit and Compatibility — BNC, 50 Ohm, RG58
This adapter mates with standard BNC male plugs on 50 Ohm coax. The 50 Ohm impedance matches most BNC-based RF and video systems.
