No pin-compatible direct replacement has been announced by the OEM.
Mates with AMP-Latch IDC receptacles that accept the same 0.100" pitch ribbon cable. The push-pull fastening type and keying slot prevent mis-mating.

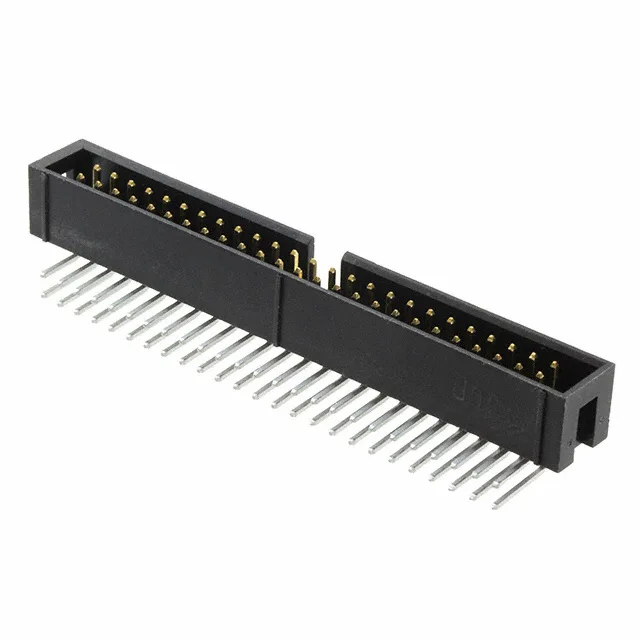

5-1634689-0 TE Connectivity AMP-Latch Header, 50 Pos
MPN5-1634689-0
Obsolete
TE Connectivity AMP-Latch series, shrouded header, 50 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, gold mating finish, 3 A per contact.
$0.5300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What is the pinout of 5-1634689-0?
The pinout follows a standard dual-row 0.100" pitch layout with all 50 positions loaded. The keying slot on the housing ensures correct orientation with the mating receptacle.
Where can I buy 5-1634689-0?
We source this obsolete part through independent distribution channels. Availability and pricing are confirmed at RFQ against your BOM quantity.
