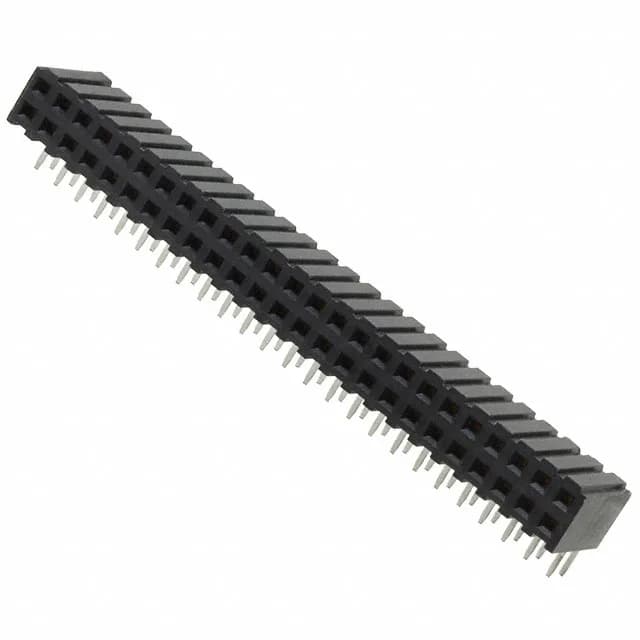

TE Connectivity AMPMODU board-to-board receptacle, 50 positions, 2.00mm pitch, right-angle through-hole solder termination, gold mating finish, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.191\" (4.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 50 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Voltage rating is 250 VAC, adequate for low-voltage signal and power distribution within the same backplane or mezzanine assembly.
The base product number is 1734531, which can help search for mating headers or alternate packaging options in the same AMPMODU series.
The receptacle has 50 positions loaded in a dual-row arrangement with 2.00 mm pitch and 2.00 mm row spacing. The pinout follows the standard AMPMODU grid pattern — the mating header pin assignment determines the signal routing.
