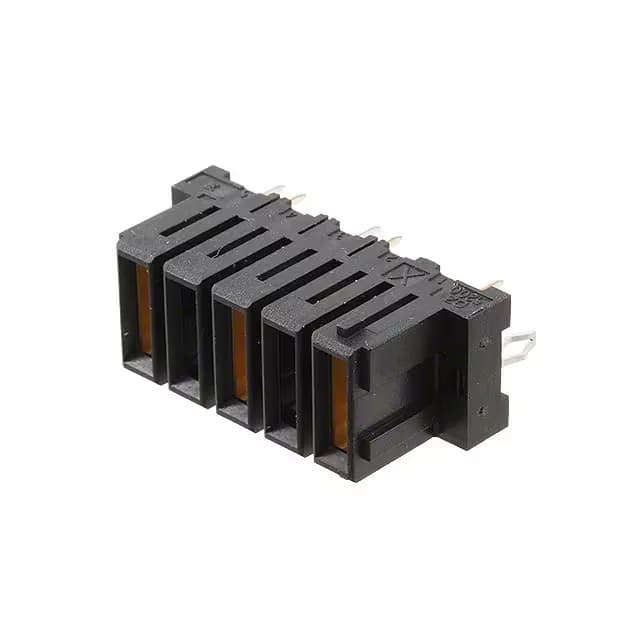

TE Connectivity AMP Connectors Dynamic DZ5200 receptacle, order code 5-1747147-3, 3 positions, single row, 0.400" (10.16 mm) pitch, 30 A, 600 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic DZ5200 |
| Type | Female Blade Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 600V |
| Current rating | 30A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.551\" (14.00mm) |
| Insulation material | Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide, Board Lock |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.400\" (10.16mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
The 5-1747147-3 is the 3-position member of TE's Dynamic DZ5200 receptacle series, a single-row board-to-board power interconnect.
Board guide and board lock features are integrated into the 0.551" (14.00 mm) insulation height — the guide helps align the receptacle during placement, and the lock holds it in place through wave solder.
The housing is rated UL94 V-0. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors for this part.
